2N4923 NPN General Purpose Transistor designed for driver circuits, switching, and amplifier applications.

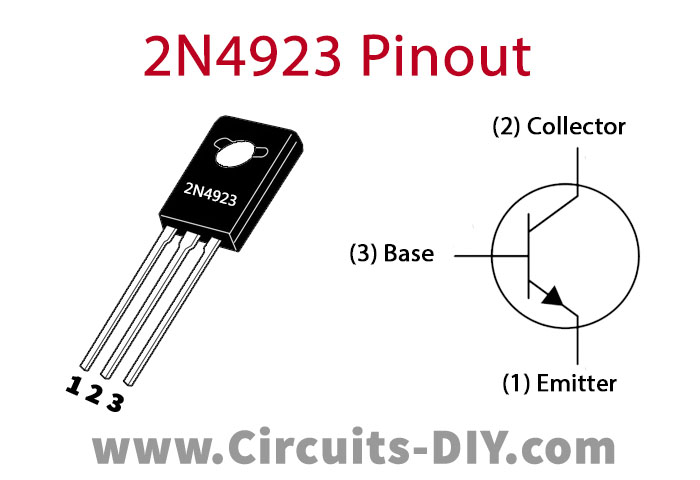

2N4923 Pinout
2N4923 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Emitter |
| 2 | Collector |
| 3 | Base |
2N4923 Key Features
- With TO-126 package
- Complement to type 2N4918/4919/4920
- Excellent safe operating area
- Low collector saturation voltage
2N4923 Specification
| Name | Description |
|---|---|
| Collector-Emitter Voltage (Vce) | 80 V |
| Collector-Base Voltage (Vcb) | 80 V |
| Emitter-Base Voltage (Veb) | 5 V |
| Collector Current (Ic) | 3 A |
| Collector Power Dissipation (Pc) | 30 W |
| Transition Frequency | 3 MHz |
Application
- Driver circuits
- Switching
- Amplifier applications
You can download this datasheet for 2N4923 NPN General Purpose Transistor - Datasheet from the link given below:
