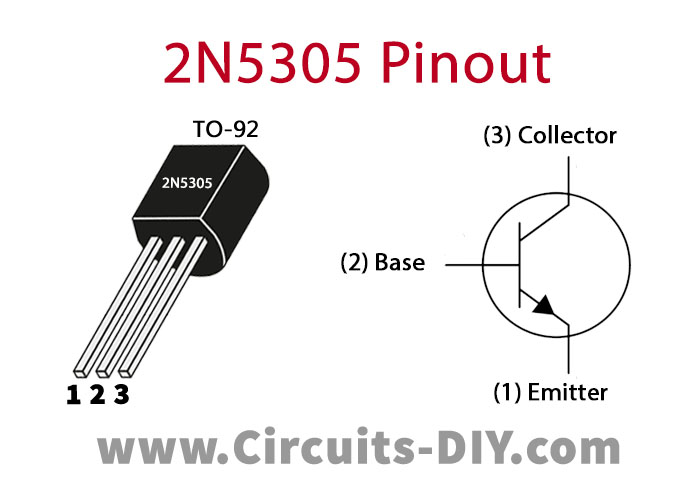

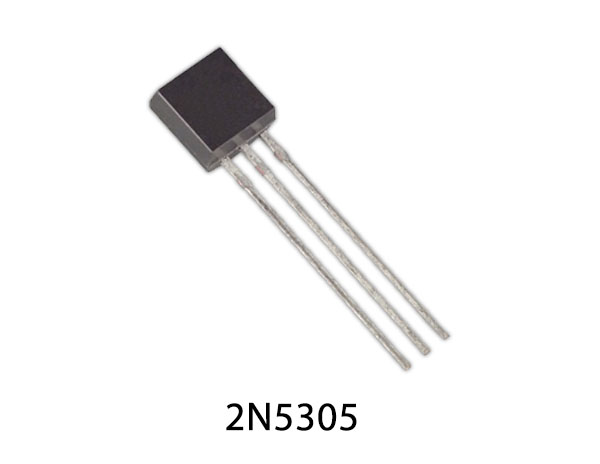

2N5305 Pinout
2N5305 Pin Configuration
| Pin No | Pin Name |
|---|
| 1 | Emitter |
| 2 | Base |
| 3 | Collector |
2N5305 Key Features
- Complement to type 2N4398/4399/5745
- Low collector/saturation voltage
- Excellent safe operating area
2N5305 Specification
| Name | Description |
|---|
| Collector-Emitter Voltage (Vce) | 25 V |
| Collector-Base Voltage (Vcb) | 25 V |
| Emitter-Base Voltage (Veb) | 12 V |
| Collector Current (Ic) | 0.3 A |
| Collector Power Dissipation (Pc) | 0.4 W |
| Transition Frequency | 60 MHz |
Application
- For use in power amplifier and switching circuits applications
You can download this datasheet for 2N5305 NPN Darlington Transistor - Datasheet from the link given below:
