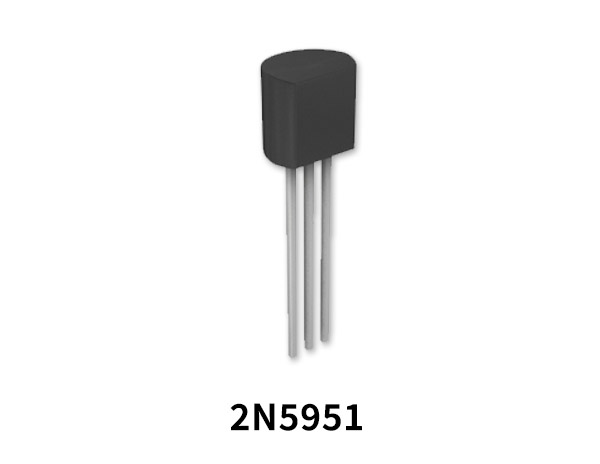

2N5951 N-Channel RF Amplifier is designed primarily for electronic switching applications such as low on resistance analog switching.

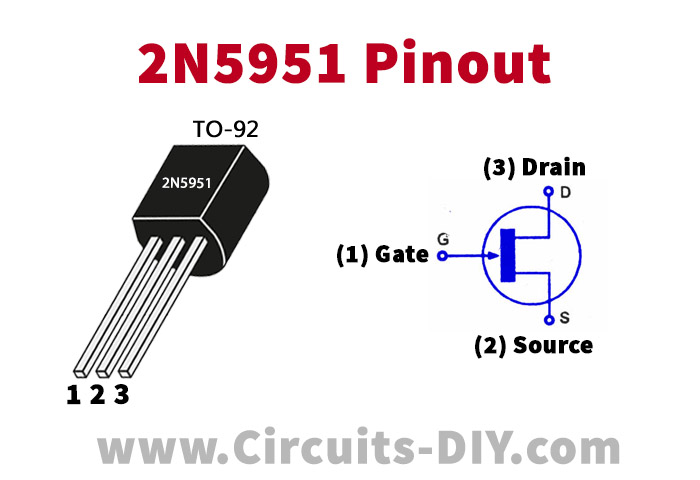

2N5951 Pinout
2N5951 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Gate |
| 2 | Source |
| 3 | Drain |
2N5951 Key Features
- Type Designator: 2N5951
- Type of Transistor: JFET
- Type of Control Channel: N -Channel
- Package: TO-92-18R
2N5951 Specification
| Id(A) | P d(W) | V ds(V) | T j(C) | V gs(V) |
| 0.013 | 0.35 | 30 | 150 | 4.5 |
2N5951 Equivalent/Alternate
- 2N50, 2N500, 2N5000, 2N5000SM, 2N5001, 2N5001S, 2N5001SM, 2N5001SMD, 2N5002
Applications
- Electronic switching applications
- Low On resistance analog switching
You can download this datasheet for 2N5951 N-Channel RF Amplifier from the link given below:
