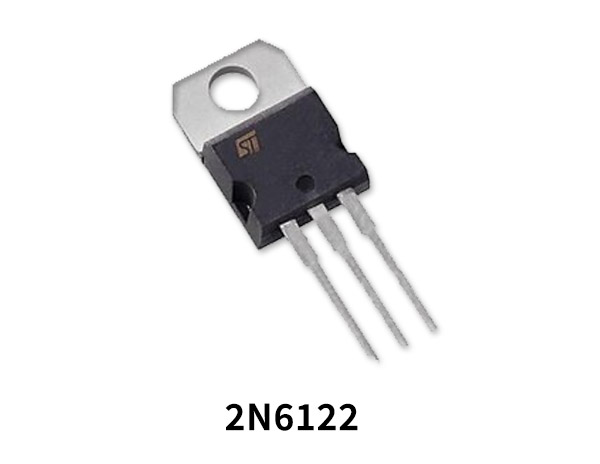

2n6122 is an NPN Power Transistor mostly used in power amplifier and switching circuit applications.
What is Power Transistor?
Transistors are three-terminal semiconductor electronic devices that can be used as switches or amplifiers. They can be of NPN or PNP polarity, and many different types are available with different power and switching speed ratings. If a transistor designed to these concepts can handle more than 1 A of collector current, it is generally considered to be a power transistor. Such transistors must have low output resistance to deliver large load currents, and good junction insulation to resist high voltages. They must also dissipate heat very quickly to avoid overheating.

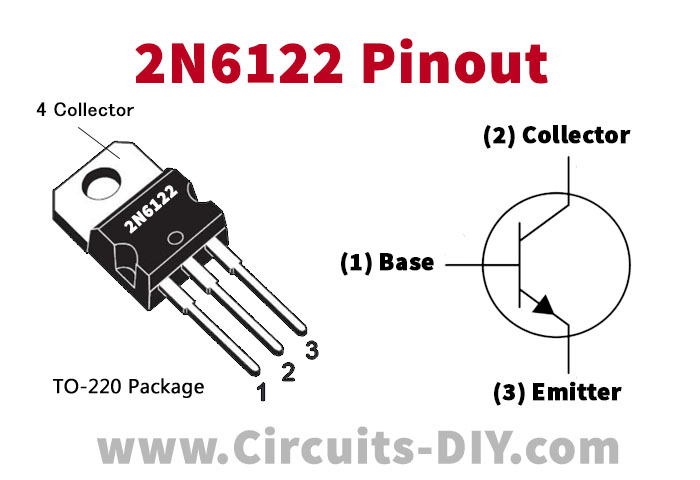

2N6122 Pinout
2N6122 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Base |
| 2 | Collector |
| 3 | Emitter |
| 4 | Collector (Case) |
2N6122 Key Features
- Collector-Emitter Sustaining Voltage-
- : VCE(sat) = 0.6V(Max.)@ IC= 1.5A
- Collector-Emitter Sustaining Voltage-
- : VCEO(SUS)= 60V(Min)
- Complement to Type 2N6125
- Minimum Lot-to-Lot variations for robust device performance and reliable operation
- Type Designator: 2N6122
- Material of Transistor: Si
- Polarity: NPN
Specification
| Ic (mA) | Pd (mW) | Vce (max) | Vcb | hfe | @Ic | FT (MHz) |
|---|---|---|---|---|---|---|
| 4 | 40 | 60 | 60 | 25-100 | 1500 | 2.5 |
2N6122 Equivalent/Alternate:
- 2N60, 2N600, 2N6000, 2N6001, 2N6002, 2N6125
Application
- Power Amplifier
- Switching Circuits
You can download this datasheet for 2N6122 NPN Power Transistor from the link given below:
