2SC1047 NPN Small Signal Transistor is designed for high-frequency amplification applications. 2SC1047 is a High transition frequency fT.

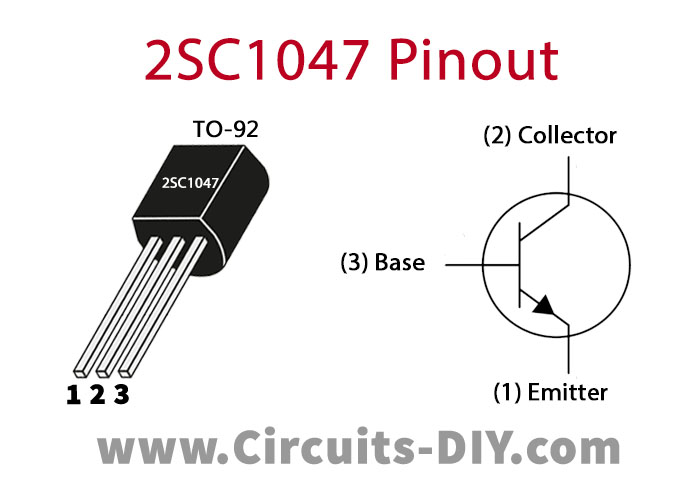

2SC1047 Pinout
2SC1047 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Emitter |
| 2 | Collector |
| 3 | Base |
2SC1047 Key Features
- Optimum for RF amplification of FM/AM radios.
- High transition frequency fT
2SC1047 Specification
| Name | Description |
|---|---|
| Collector-Emitter Voltage (Vce) | 20 V |
| Collector-Base Voltage (Vcb) | 30 V |
| Emitter-Base Voltage (Veb) | 3 V |
| Collector Current (Ic) | 0.015 A |
| Collector Power Dissipation (Pc) | 0.15 W |
| Transition Frequency | 325 MHz |
Application
- For high-frequency amplification
You can download this datasheet for 2SC1047 NPN Small Signal Transistor - Datasheet from the link given below:
