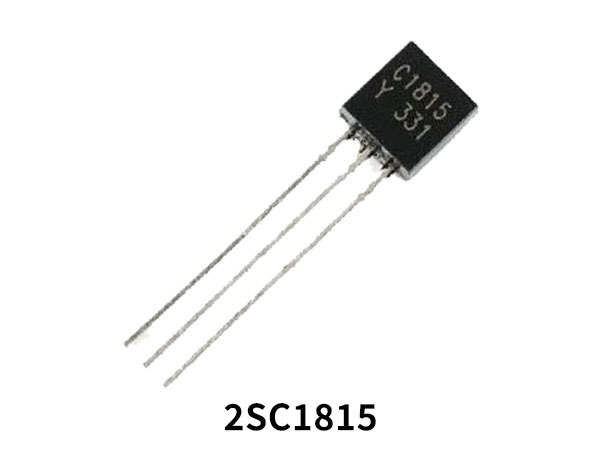

2SC1815 NPN Small Signal Transistor is designed for driver stage amplifier and audio frequency general purpose amplifier application

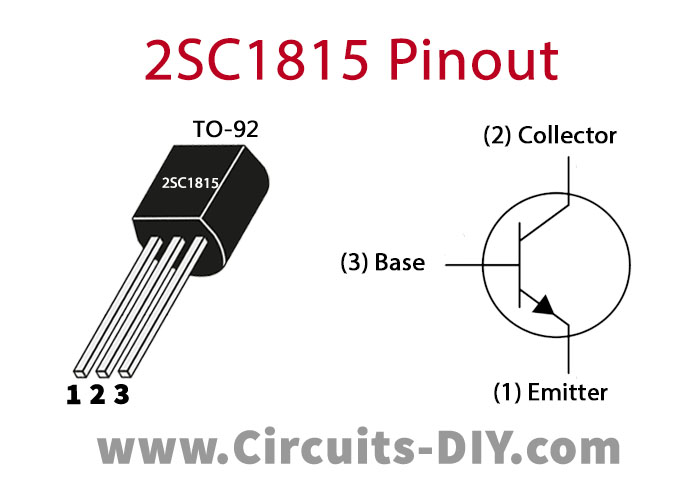

2SC1815 Pinout
2SC1815 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Emitter |
| 2 | Collector |
| 3 | Base |
2SC1815 Key Features
- High Voltage and High Current
- VCEO=50V (Min.), Ic=150mA (Max.)
- Excellent hyE Linearity
- : hFE(2)=100 (Typ.) at VCE = 6V, Ic=150mA
- :hFE Ic=0.1mA) /hfĘ Ic=2mA)=0.95 (Typ.)
- Low Noise :NF=1dB (Typ.) at f=1kHz
- Complementary to 2SA1015 (0, Y, GR class)
2SC1815 Specification
| Name | Description |
|---|---|
| Collector-Emitter Voltage (Vce) | 50 V |
| Collector-Base Voltage (Vcb) | 60 V |
| Emitter-Base Voltage (Veb) | 5 V |
| Collector Current (Ic) | 0.15 A |
| Collector Power Dissipation (Pc) | 0.4 W |
| Transition Frequency | 80 MHz |
Application
- Audio Frequency General Purpose Amplifier Application
- Driver Stage Amplifier Application
You can download this datasheet for 2SC1815 NPN Small Signal Transistor - Datasheet from the link given below:
