2SC2671 NPN UHF Amplifier is designed for UHF band low-noise amplification application

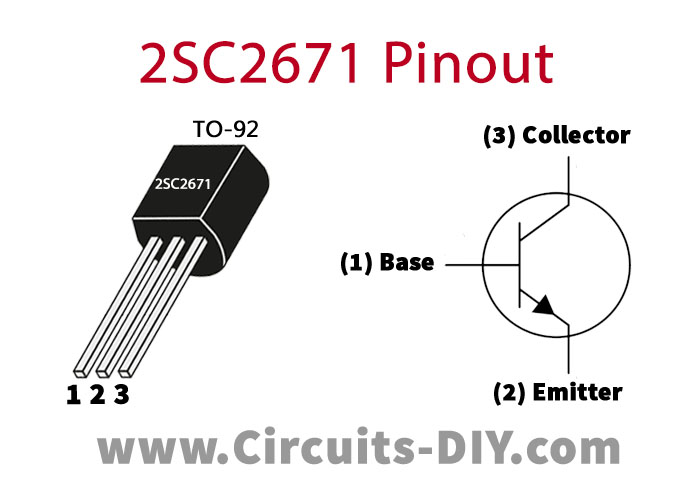

2SC2671 Pinout
2SC2671 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Base |
| 2 | Emitter |
| 3 | Collector |
2SC2671 Key Features
- Low noise figure NF.
- High gain.
- High transition frequency
2SC2671 Specification
| Name | Description |
|---|---|
| Collector-Emitter Voltage (Vce) | 14 V |
| Collector-Base Voltage (Vcb) | 25 V |
| Emitter-Base Voltage (Veb) | 3 V |
| Collector Current (Ic) | 0.07 A |
| Collector Power Dissipation (Pc) | 0.75 W |
| Transition Frequency | 2500 MHz |
Application
- UHF band low-noise amplification
