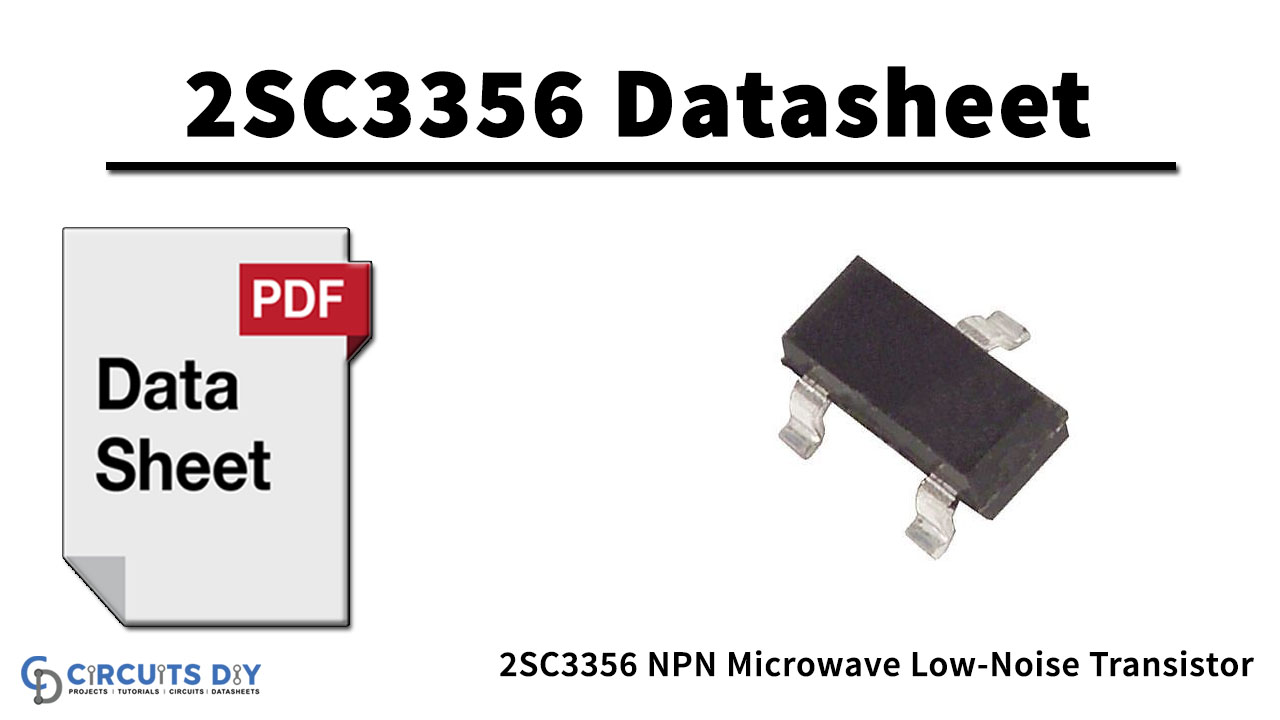

The 2SC3356 NPN Microwave Low-Noise Transistor is an NPN silicon epitaxial transistor designed for low noise amplifier at VHF, UHF, and CATV band. It has a dynamic range and good current characteristic
2SC3356 Pinout
2SC3356 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Emitter |
| 2 | Base |
| 3 | Collector |
2SC3356 Key Features
- Low Noise and High Gain
- NF = 1.1 dB TYP., Ga = 11 dB TYP. @VCE = 10 V, IC = 7 mA, f = 1.0 GHz
- High Power Gain
- MAG = 13 dB TYP. @VCE = 10 V, IC = 20 mA, f = 1.0 GHz
2SC3356 Specification
| Name | Description |
|---|---|
| Collector-Base Voltage (Vcb) | 20 V |
| Emitter-Base Voltage (Veb) | 5 V |
| Collector Current (Ic) | 0.1 A |
| Transition Frequency | 7000 MHz |
Application
- low noise amplifier at VHF, UHF, and CATV band
You can download this datasheet for 2SC3356 NPN Microwave Low-Noise Transistor - Datasheet from the link given below:
