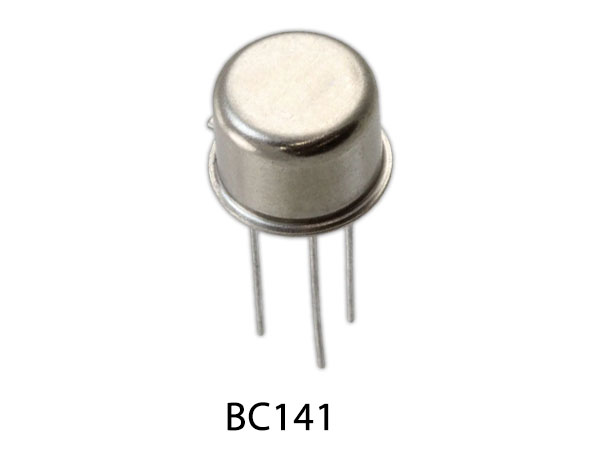

The BC141 is a silicon planar epitaxial NPN transistor in the Jedec TO-39 metal case. It is particularly designed for audio amplifiers and switching applications up to 1A. The complementary PNP type is the BC161.
BC141 Pinout
BC141 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Emitter |
| 2 | Base |
| 3 | Collector |
BC141 Key Features
- High current (max. 1 A)
- Low voltage (max. 60 V)
BC141 Application
- Audio amplifiers
- Switching application
You can download this datasheet for BC141 NPN General Purpose Transistor - Datasheet from the link given below:
