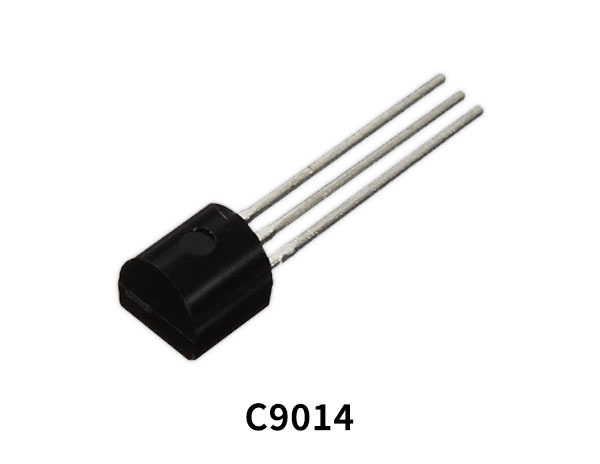

C9014 NPN Small Signal Transistor is designed for general purpose and switching amplifier applications. C9014 is complementary to KTC9015.

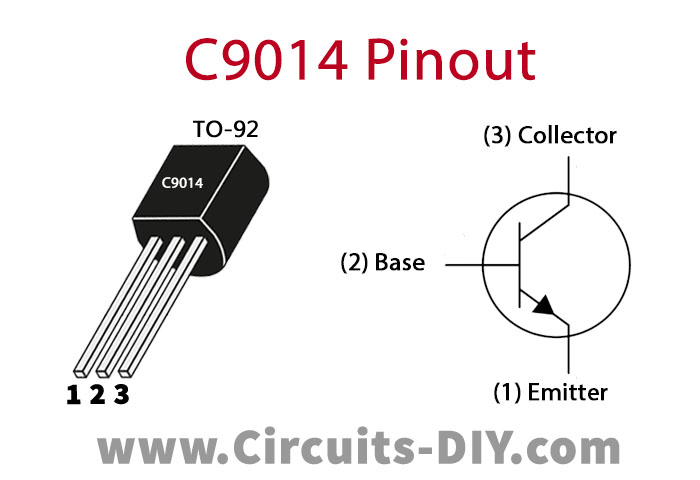

C9014 Pinout
C9014 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Emitter |
| 2 | Base |
| 3 | Collector |
C9014 Key Features
- Excellent hfe Linearity
- hfe(k-0.1ImA)/hfE(l=2mA)=0.95(Typ.).
- Low Noise :NF-1dB(Typ.) at f-1kHz.
- Complementary to KTC9015.
C9014 Specification
| Name | Description |
|---|---|
| Collector-Emitter Voltage (Vce) | 50 V |
| Collector Current (Ic) | 0.15 A |
| Collector Power Dissipation (Pc) | 0.625 W |
Application
- General Purpose Application
- Switching Application
You can download this datasheet for C9014 NPN Small Signal Transistor - Datasheet from the link given below:
