Electronic Dice Circuit using CD4017 IC

Contents hide

The image underneath shows electronic dice that can be made to produce an arbitrary number. It may be utilized as an ordinary dice in games.

The dice work by exchanging LEDs ON and OFF in a pattern of dabs found on customary dice. The microcontroller is the ‘master mind’ of the electronic dice.

Microcontrollers are ground-breaking electronic parts that have a memory and can be modified to turn things ON and OFF in any require and unpredictable pattern. The microcontroller in the dice can turn the LEDs ON and OFF to show numbers somewhere in the range of one and six. Each time the press button S1 is squeezed it leaves the circuit will show a different number.

The microcontroller that we use here in this project is of two kinds. One is NE555 clock IC while the other is CD4017 Johnson decade counter.

Buy Now

Hardware Components

The following components are required to make Electronic Dice Circuit

S.no	Component	Value	Qty
1.	IC	NE555 Timer	1
2.	Johnson decade counter	CD4017	1
3.	Diode	1N4148	12
4.	Electrolytic capacitor	10µF, 0.01µF	1
5.	Switch	–	1
6.	Resistor	1K	2
7.	LEDs	–	7
8.	Variable Resistor	470R	7
9.	DC battery	9V – 12V	1

555 Timer Pinout

For a detailed description of pinout, dimension features, and specifications download the datasheet of 555 Timer

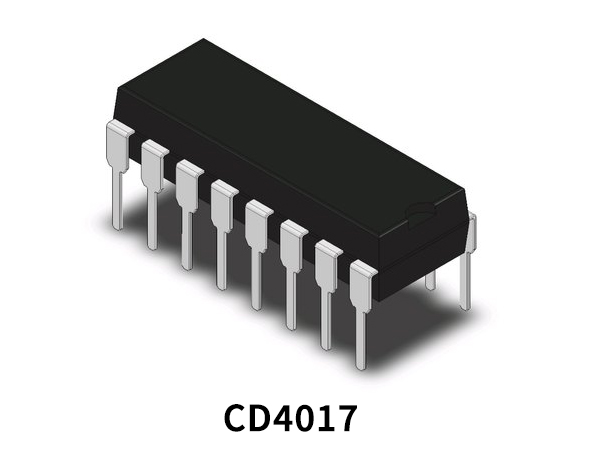

CD4017 Pinout

For a detailed description of pinout, dimension features, and specifications download the datasheet of CD4017

Electronic Dice Circuit

Working Explanation

The circuit is utilizing two ICs and many other discrete parts i.e. 1N4148 power diodes, 10µF and 0.01µF capacitors, Two 1kΩ resistors, one switch, and a series of 470R variable resistors, and so forth mentioned in the circuit diagram.
