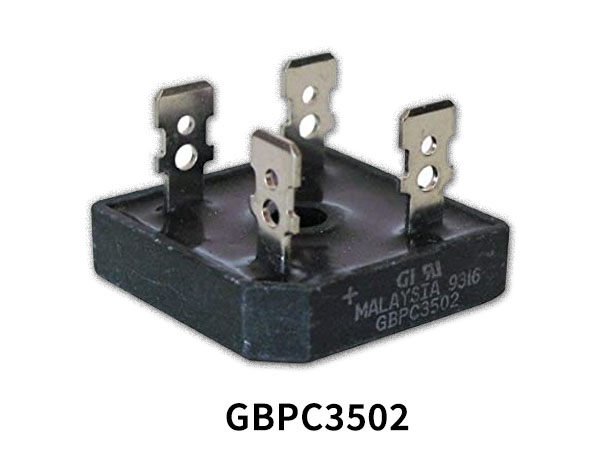

GBPC3502 200V 35A Bridge Rectifier has a High reverse voltage of up to 1000V, overload rating is a 35 amperes peak.

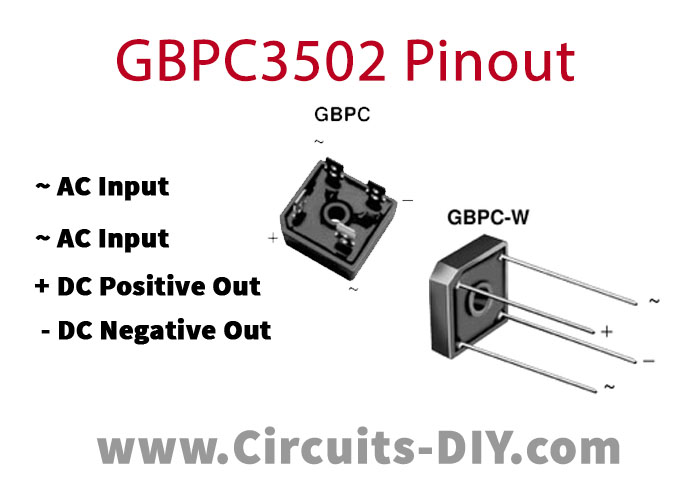

GBPC3502 Pinout
GBPC3502 Pin Configuration
| Pin | Description |
|---|---|
| ~ | AC Input |
| ~ | AC Input |
| + | DC Positive Output |
| - | DC Negative Output |
GBPC3502 Features
- High Current and High Power Ratings
- Solid Construction for Panel Mounting
- Large Quantity Discounts Available
GBPC3502 Specification
| Type | Vrrm (V) | Vrms (V) | Vdc (V) | Io (A) | Ir (mA) | Vf (V) |
|---|---|---|---|---|---|---|
| GBPC3502 | 200 | 140 | 200 | 35.0 | 0.005 | 1.1 |
You can download this datasheet for GBPC3502 200V 35A Bridge Rectifier from the link given below:
