J176 JFET P Channel Transistor is designed for low level analog switching sample and hold circuits and chopper stabilized amplifiers.

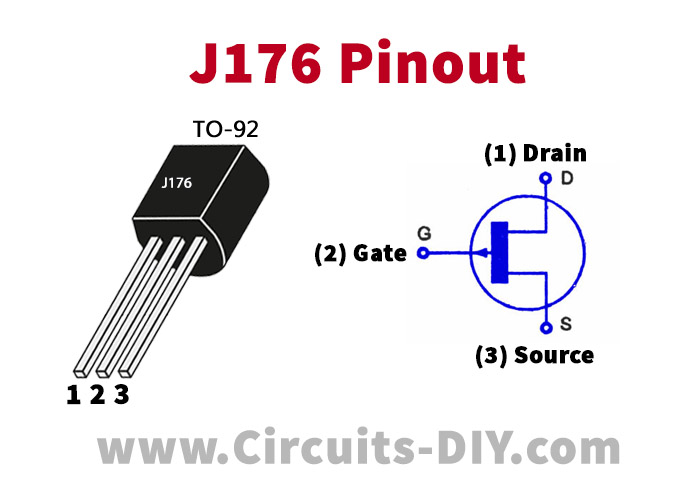

J176 Pinout
J176 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Drain |
| 2 | Gate |
| 3 | Source |
J176 Key Features
- Type Designator: J176
- Type of Transistor: JFET
- Type of Control Channel: P -Channel
- Package: TO92
- Low On-Resistance
- Fast Switching
- Low Leakage
- Low Capacitance
J176 Specification
| Id(A) | P d(W) | V ds(V) | V gs(V) | T j(C) | R ds(Ohm) |
| 0.025 | 0.35 | 30 | 4.5 | 150 | 250 |
J176 Equivalent/Alternate
- J176, PMBFJ176, 2SJ176, CMPFJ176, MMBFJ176
Applications
- Analog Switches
- Choppers
- Sample-and-Hold
- Normally “On” Switches
- Current Limiters
You can download this datasheet for J176 JFET P Channel Transistor from the link given below:
