LM124 IC consist of four independent high-gain frequency-compensated operational amplifiers that are designed specifically to operate from a single supply or split supply over a wide range of voltages. Application areas include transducer amplifiers, DC gain blocks, and all the conventional op-amp circuits which now can be more easily implemented in single power supply systems. For example, the LM124-N series can directly operate off of the standard 5-V power supply voltage.
Operational Amplifier
Operational amplifiers are simple electronic circuits that can boost a weak signal to a level of higher amplitude. An operational amplifier is generally used in applications such as home entertainment systems, megaphones, speakers, and microphones, etc. An op-amp usually operates with a number of feedback components that determine the resulting function or “operation” of the amplifier and by virtue of the different feedback, configurations whether resistive, capacitive, or both.

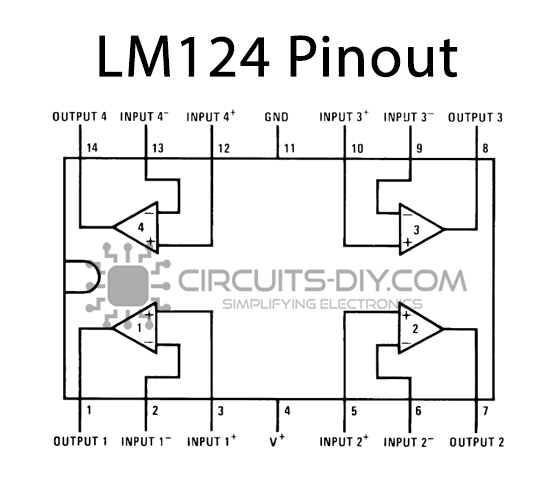

LM124 Pinout
LM124 Pin Configuration
| Pin No | Pin Name | Description |
|---|---|---|
| 1 | OUTPUT 1 | Output Of Amplifier 1 |
| 2 | INV-INPUT 1 | Inverting Input Of Amplifier 1 |
| 3 | NON-INV-INPUT 1 | Non Inverting Input Of Amplifier 1 |
| 4 | V+ | Positive Power Supply |
| 5 | NON-INV-INPUT 2 | Non Inverting Input Of Amplifier 2 |
| 6 | INV-INPUT 2 | Inverting Input Of Amplifier 2 |
| 7 | OUTPUT 2 | Output Of Amplifier 2 |
| 8 | OUTPUT 3 | Output Of Amplifier 3 |
| 9 | INV-INPUT 3 | Inverting Input Of Amplifier 3 |
| 10 | NON-INV-INPUT 3 | Non Inverting Input Of Amplifier 3 |
| 11 | GND | Ground Pin |
| 12 | NON-INV-INPUT 4 | Non Inverting Input Of Amplifier 4 |
| 13 | INV-INPUT 4 | Inverting Input Of Amplifier 4 |
| 14 | OUTPUT 4 | Output Of Amplifier 4 |
LM124 Features and Specification
- Internally frequency compensated for unity gain
- Large DC voltage gain 100 dB
- Wide bandwidth (unity gain) 1 MHz (temperature compensated)
- Very low supply current drain (700 µA) — essentially independent of supply voltage
- Low input biasing current 45 nA (temperature compensated)
- Low input offset voltage 2 mV and offset current: 5 nA
- Input common-mode voltage range includes ground
- Differential input voltage range equal to the power supply voltage
- Large output voltage swing 0V to V+ − 1.5V
Application
- Transducer amplifiers
- Dc amplification blocks
- conventional operational-amplifier
LM124 Datasheet
You can download this datasheet for LM124 Low-Power Quad Op Amp from the link given below:
See Also: CD4052 Differential 4-channel Multiplexer/Demultiplexer Datasheet | CD4066 Quad Bilateral Switch – Datasheet | CD4030 Quad EXCLUSIVE-OR Gate -Datasheet
