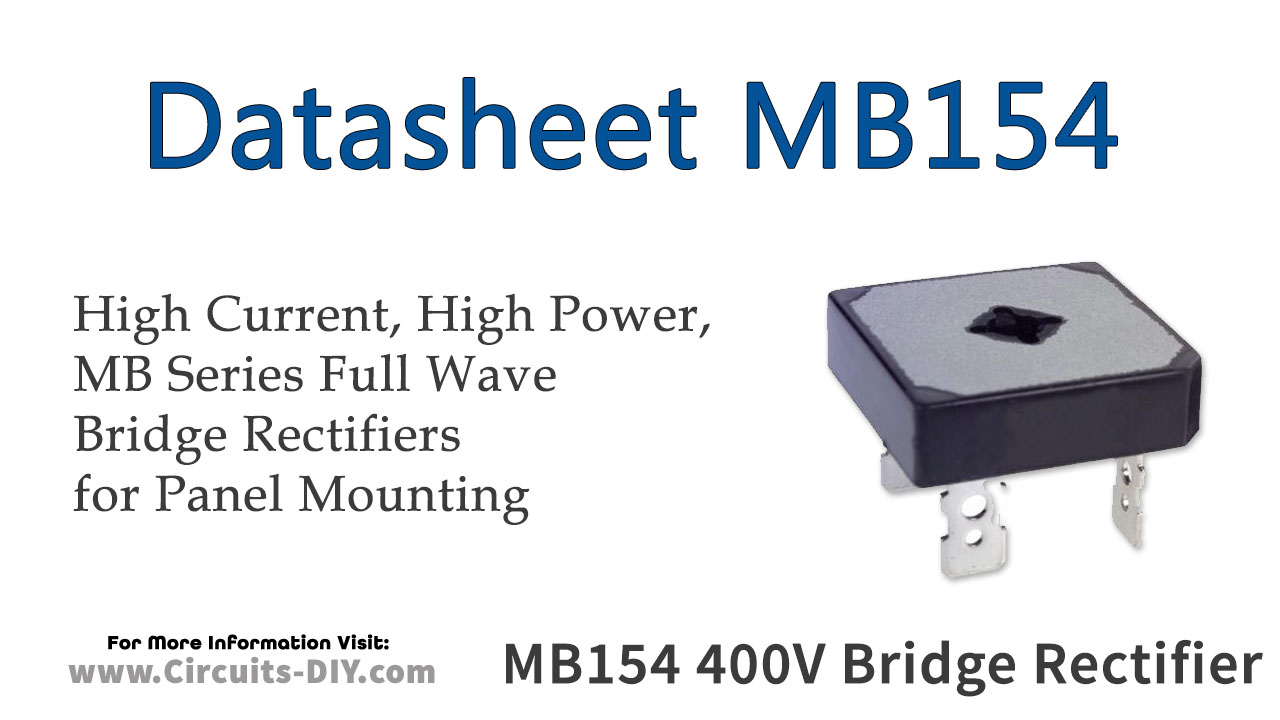

MB154 400V 15A Bridge Rectifier has a High reverse voltage of up to 1000V, overload rating is a 300 amperes peak. MB154 has a single-phase, half wave, 60 Hz, resistive or inductive load.
MB154 Pinout
MB154 Pin Configuration
| Pin | Description |
|---|---|
| ~ | AC Input |
| ~ | AC Input |
| + | DC Positive Output |
| – | DC Negative Output |
MB154 Features
- High Current Ratings
- Solid Construction Suitable for Panel Mounting
- Large Quantity Discounts Available
- RoHS Compliant
MB154 Specification
| Type | Vrrm (V) | Vrms (V) | Vdc (V) | Io (A) | Ir (mA) | Vf (V) |
|---|---|---|---|---|---|---|
| MB154 | 400 | 280 | 400 | 15.0 | 0.01 | 1.1 |
You can download this datasheet for MB154 400V 15A Bridge Rectifier from the link given below:
