MB251 100V 25A Bridge Rectifier has a High reverse voltage of up to 1000V, overload rating is a 300 amperes peak. MB251 has a single-phase, half wave, 60 Hz, resistive or inductive load.

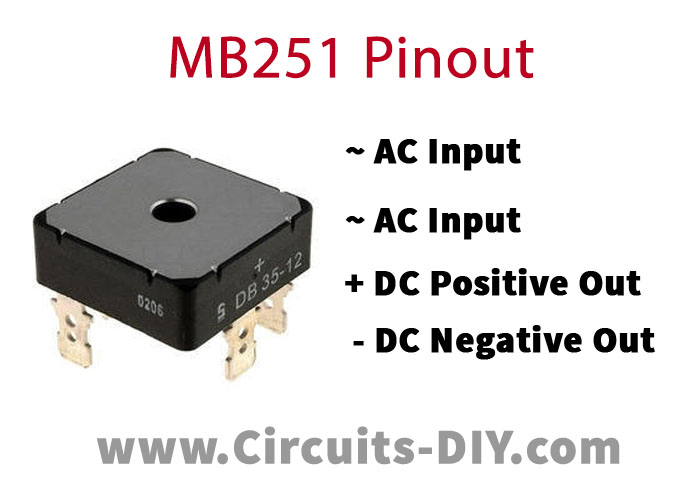

MB251 Pinout
MB251 Pin Configuration
| Pin | Description |
|---|---|
| ~ | AC Input |
| ~ | AC Input |
| + | DC Positive Output |
| - | DC Negative Output |
MB251 Features
- High Current Ratings
- Solid Construction Suitable for Panel Mounting
- Large Quantity Discounts Available
- RoHS Compliant
MB251 Specification
| Type | Vrrm (V) | Vrms (V) | Vdc (V) | Io (A) | Ir (mA) | Vf (V) |
|---|---|---|---|---|---|---|
| MB251 | 100 | 70 | 100 | 25.0 | 0.01 | 1.1 |
You can download this datasheet for MB251 100V 25A Bridge Rectifier from the link given below:
