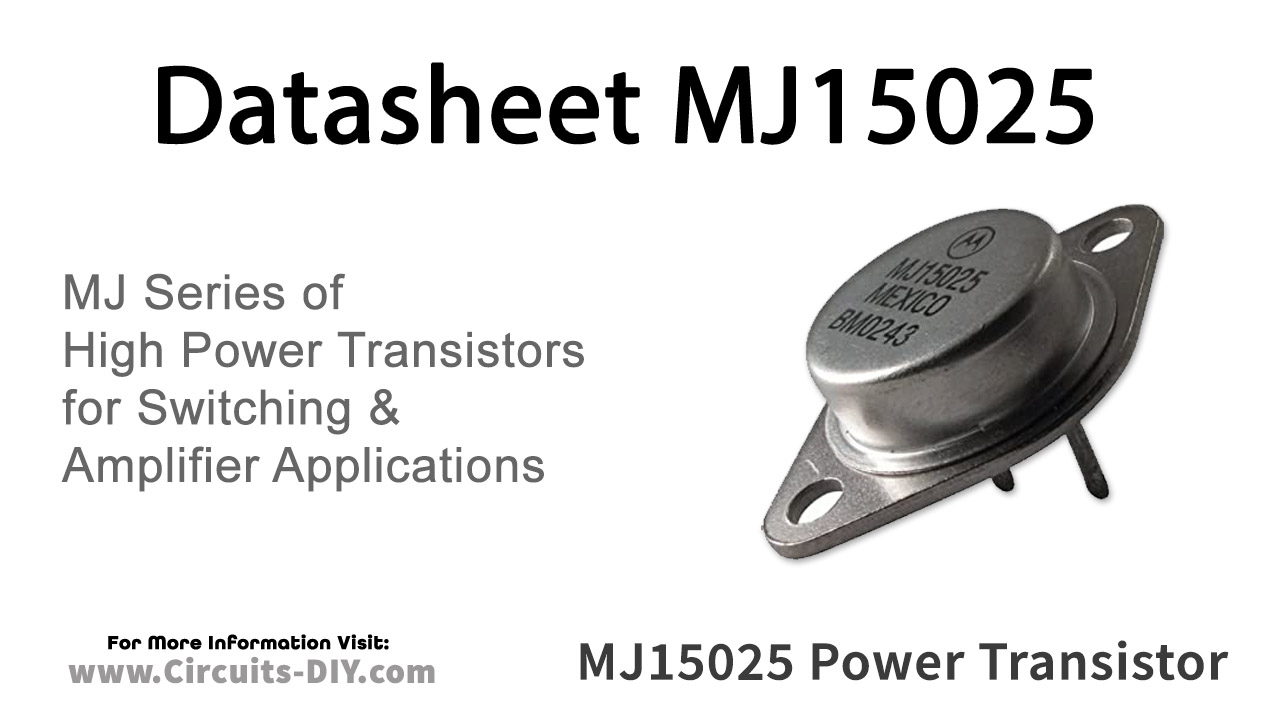

The MJ15025 is PNP Power Base power transistors designed for high power audio, disk head positioners and other linear application

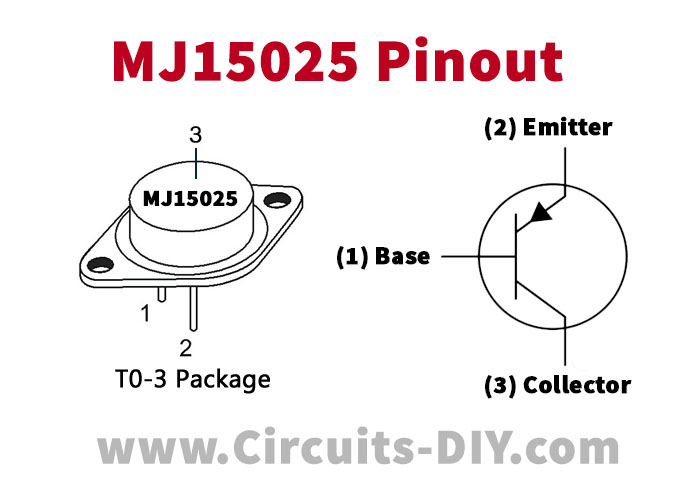

MJ15025 Pinout
MJ15025 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Base |
| 2 | Emitter |
| 3 | Collector |
MJ15025 Key Features
- High Safe Operating Area (100% Tested) — 2 A @ 80 V
- High DC Current Gain — hFE = 15 (Min) @ IC = 8 A
- Type Designator: MJ15025
- Material of Transistor: Si
- Polarity: PNP
- Maximum Emitter-Base Voltage |Veb|: 7 V
MJ15025 Specification
| Ic (mA) | Pd | Vce (max) | Vcb | hfe | @Ic | Ft |
|---|---|---|---|---|---|---|
| 16 | 250 | 250 | 400 | 15-60 | 8000 | 4 |
MJ15025 Equivalent/Alternate:
- MJ10000, MJ10001, MJ10002, MJ10003, MJ10004, MJ15022; MJ15024
Application
- High Power Audio
- Disk Head Positioners
You can download this datasheet for MJ15025 PNP Power Transistor from the link given below:
