PN3565 NPN General Purpose Transistor - Datasheet

WHWajid Hussain1,701 projects 20 Jan 2022 1 min read 2,798 views

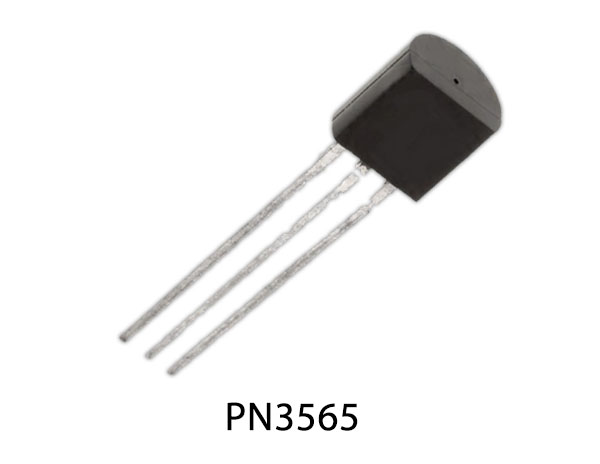

PN3565 NPN General Purpose Transistor is designed for use as general-purpose amplifiers and switches requiring collector currents to 300 mA.

PN3565 Pinout

Name	Description
Collector-Emitter Voltage (Vce)	25 V
Collector-Base Voltage (Vcb)	30 V
Emitter-Base Voltage (Veb)	5 V
Collector Current (Ic)	0.1 A
Collector Power Dissipation (Pc)	0.36 W
Transition Frequency	40 MHz

You can download this datasheet for PN3565 NPN General Purpose Transistor - Datasheet from the link given below:
