BF324 NPN High Voltage Transistor is designed for RF stages in FM front-ends in a common base configuration. PNP medium frequency transistor in a TO-92; SOT54 plastic package

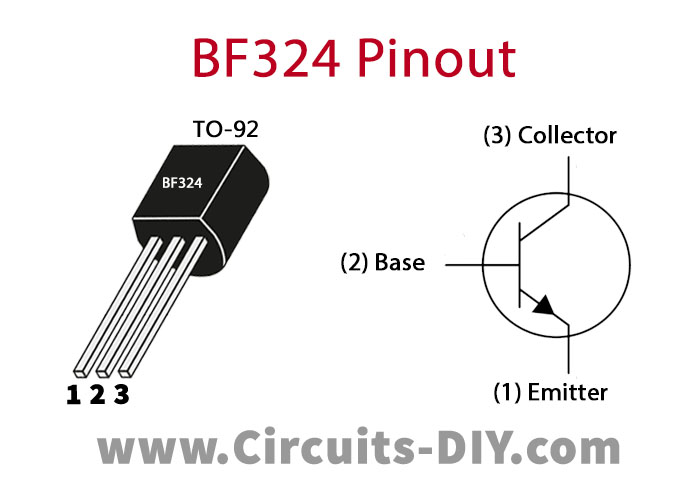

BF324 Pinout
BF324 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Emitter |
| 2 | Base |
| 3 | Collector |
BF324 Key Features
- Low current (max. 25 mA)
- Low voltage (max. 30 V)
Specification
| Maximum Collector Power Dissipation (Pc) | 0.2 W |
| Maximum Collector-Base Voltage |Vcb| | 30 V |
| Maximum Collector-Emitter Voltage |Vce| | 30 V |
| Maximum Emitter-Base Voltage |Veb| | 4 V |
| Maximum Collector Current |Ic max| | 0.025 A |
| Type Designator | BF324 |
Application
- RF stages in FM front-ends in common base configuration
You can download this datasheet for BF324 NPN High Voltage Transistor - Datasheet from the link given below:
