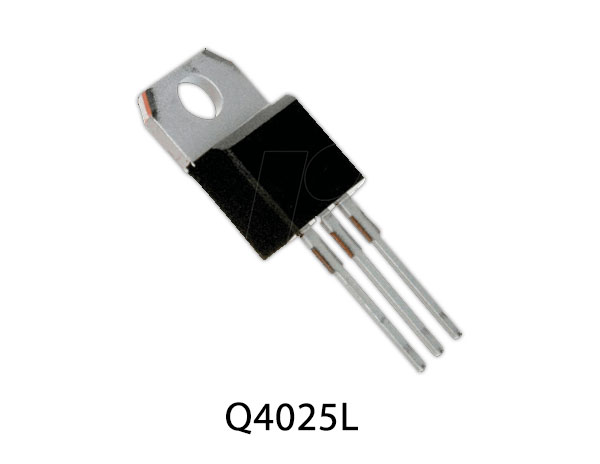

Q4025L6 25 Amp bi-directional solid state switch series is designed for AC switching and phase control applications such as motor speed and temperature modulation controls, lighting controls, and static switching relays.

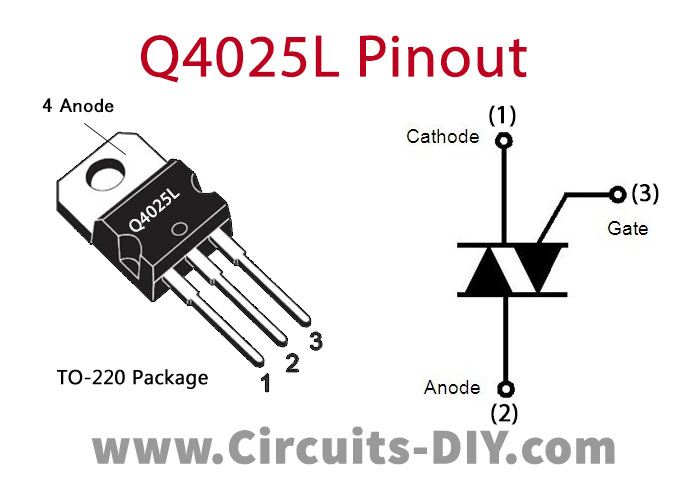

Q4025L Pinout
Q4025L Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Cathode |
| 2 | Anode |
| 3 | Gate |
Q4025L6 Features
- RoHS Compliant
- Glass – passivated junctions
- Voltage capability up to 1000 V
- Surge capability up to 250 A
Application
- AC solid-state switches
- Phase control applications
- Light dimmers
- Industrial Power tools
- Home/Brown goods and white goods appliances.
You can download this datasheet for Q4025L6 25A 400V TRIAC - Datasheet from the link given below:
