S9012 PNP Small Signal Transistor is designed for 1W output amplifier of portable radios in class B push-pull operation.

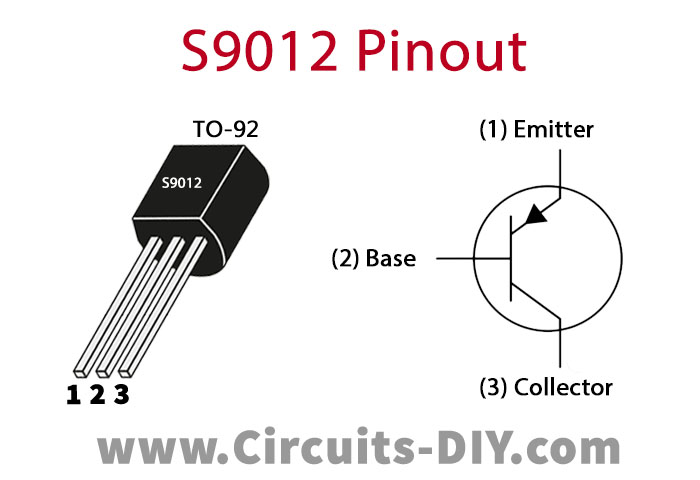

S9012 Pinout
S9012 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Emitter |
| 2 | Base |
| 3 | Collector |
S9012 Key Features
- High total power dissipation. (PT=625mW)
- High Collector Current. (IC= -500mA)
- Complementary to S9013
S9012 Specification
| Name | Description |
|---|---|
| Collector-Emitter Voltage (Vce) | 125 V |
| Collector-Base Voltage (Vcb) | 40 V |
| Emitter-Base Voltage (Veb) | 5 V |
| Collector Current (Ic) | 0.5 A |
| Collector Power Dissipation (Pc) | 0.3 W |
| Transition Frequency | 150 MHz |
Application
- 1W output amplifier of portable radios in class B push-pull operation.
