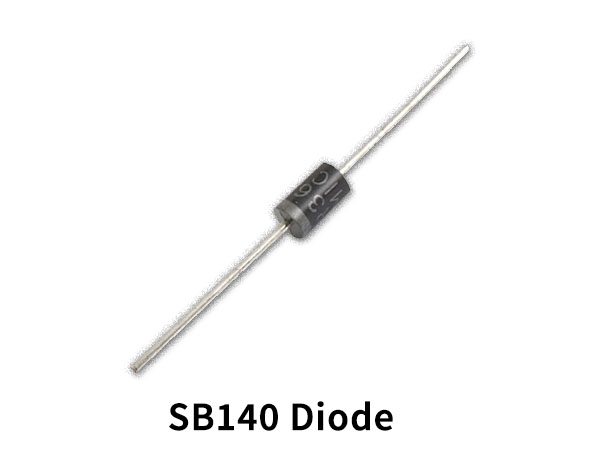

SB140 Schottky Barrier Diode with no thermal runaway and For use in low voltage, high-frequency inverters free wheeling, and polarity protection applications.
SB140 Features
- 1.0 ampere operation at TA = 75°C with no thermal runaway.
- For use in low voltage, high frequency inverters free wheeling, and polarity protection applications.
SB140 Specification
| Mfr Package Description | PLASTIC PACKAGE-2, DO-41 |
| Diode Type | RECTIFIER DIODE |
| Diode Element Material | SILICON |
| Forward Voltage-Max (VF) | 0.5 V |
| Non-rep Pk Forward Current-Max | 40.0 A |
| Operating Temperature-Min | -55.0 Cel |
| Operating Temperature-Max | 125.0 Cel |
| Output Current-Max | 1.0 A |
| Peak Reflow Temperature (Cel) | 255 |
| Rep Pk Reverse Voltage-Max | 40.0 V |
You can download this datasheet for SB140 Schottky Barrier Diode from the link given below:
