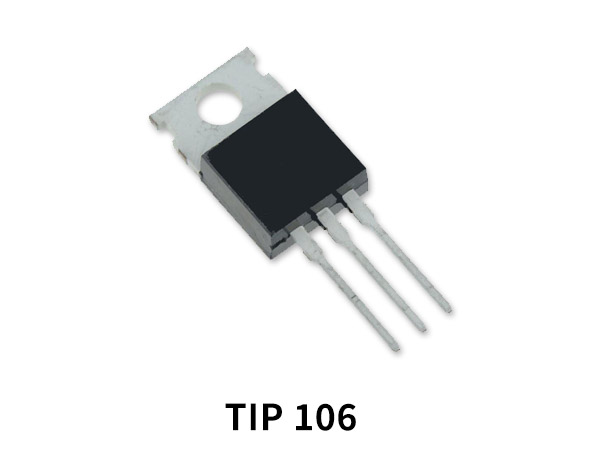

The TIP106 is silicon epitaxial-base PNP power transistors in monolithic Darlington configuration mounted in TO-220 plastic package, intended for use in power linear and switching applications. The complementary PNP types are TIP105 and TIP107 respectively

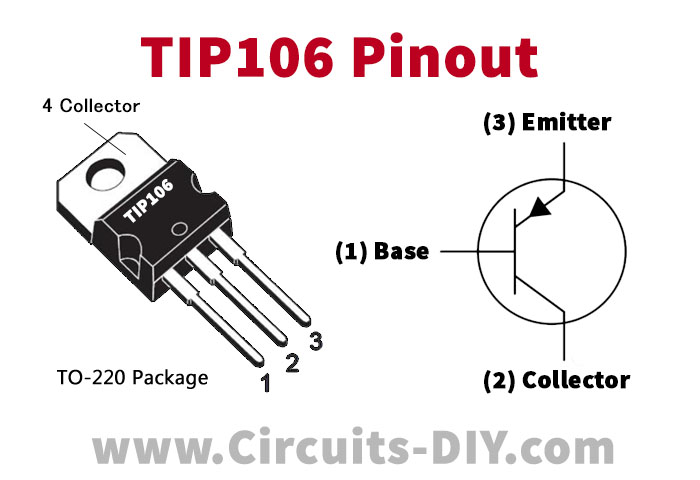

TIP106 Pinout
TIP106 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Base |
| 2 | Collector |
| 3 | Emitter |
| 4 | Case (Collector) |
TIP106 Key Features
- Collector–Emitter Sustaining Voltage — @ 30 mAdc
- VCEO(sus) = 80 Vdc (Min) — TIP106
- Low Collector–Emitter Saturation Voltage —
- VCE(sat) = 2.0 Vdc (Max) @ IC = 3.0 Adc
- VCE(sat) = 2.5 Vdc (Max) @ IC = 8.0
- Minimum Lot-to-Lot variations for robust device performance and reliable operation
- Type Designator: TIP106
- Material of Transistor: Si
- Polarity: PNP
Specification
| Ic (mA) | Pd (mW) | Vce (max) | Vcb | hfe | @Ic | FT (MHz) |
|---|---|---|---|---|---|---|
| 8 | 80 | 80 | 80 | 1000-20,000 | 3000 | 4 |
TIP106 Equivalent/Alternate:
- TIP100, TIP101, TIP102, TIP105, TIP107, TIP110
Application
- General-Purpose Amplifier
- Low-Speed Switching
You can download this datasheet for TIP106 PNP Power Darlington Transistor from the link given below:
