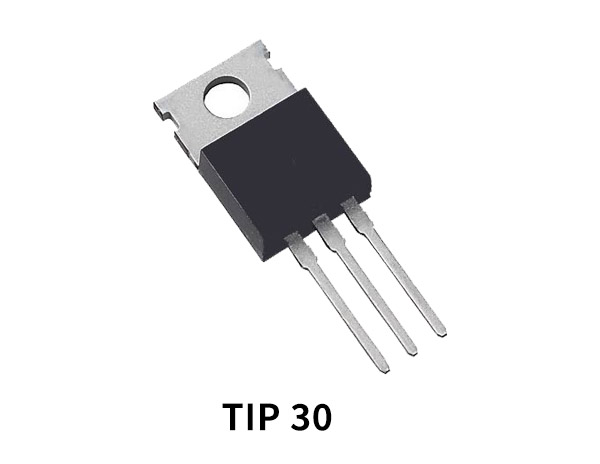

The TIP30C PNP Power Transistor silicon Epitaxial-Base mounted in Jedec TO-220 plastic package. They are intended for use in medium power linear and switching applications. The complementary PNP types are TIP29A and TIP29C respectively
TIP30 Pinout
TIP30 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Base |
| 2 | Collector |
| 3 | Emitter |
| 4 | Case (Collector) |
TIP30 Key Features
- Collector-Emitter Sustaining Voltage-
- : VCEO(SUS) = -100V(Min)
- ·Collector-Emitter Saturation Voltage-
- : VCE(sat) = -0.7V(Max.)@IC= -1.0A
- Minimum Lot-to-Lot variations for robust device performance and reliable operation
- Type Designator: TIP30C
- Material of Transistor: Si
- Polarity: PNP
- Maximum Emitter-Base Voltage |Veb|: 5 V
Specification
| Ic (mA) | Pd (mW) | Vce (max) | Vcb | hfe | @Ic | FT (MHz) |
|---|---|---|---|---|---|---|
| 1 | 30 | 100 | 100 | 15-75 | 1000 | 3 |
TIP30 Equivalent/Alternate:
- TIP100, TIP101, TIP102, TIP105, TIP106, TIP107, TIP110, TIP110A, TIP111, TIP112, TIP29C
Application
- General Purpose Amplifier
- Switching Applications
You can download this datasheet for TIP30C PNP Power Transistor from the link given below:
