An electronic device that transforms direct current(DC) electricity into alternating current(AC) is called a DC to AC converter, occasionally appertained to as an inverter. The maturity of artificial and home appliances run on interspersing current, thus this conversion is pivotal. Direct current power is produced by a variety of energy sources, including solar panels and batteries.
Definition and Characteristics of DC Power
Electric charges travel in a single direction when there is direct current (DC) power. Put otherwise, electrons have a fixed direction of motion. Typically, one moves from the negative to the positive terminal. Direct current generators, solar panels, and batteries are common sources of DC electrical energy. as well as a generator using direct current Constant voltage is one of the primary features of DC power. They are hence appropriate for applications requiring low voltage and low current. Because of its consistency and dependability, direct current electricity is frequently utilized in electronic gadgets, automobile systems, and small renewable energy projects.
Definition and Characteristics of AC Power
In discrepancy, the specific of AC power is the periodic reversal of the electric charge’s direction of inflow. The voltage of AC electricity fluctuates over time, in discrepancy to DC power. Usually, it takes the shape of a sine wave. Long-distance efficient electrical energy transmission is made possible by this format. For this reason, domestic, marketable, and artificial structures are always powered by AC power. An alternator, which is generally set up in power shops, produces alternating current, which is also distributed via the electrical grid to places and marketable structures. The simplicity with which a transformer can be used to convert AC power to different voltage situations. Because of this, it’s adaptable and perfect for wide electrical delivery.
Comparison of DC and AC Power
The direction of current flow is the primary distinction between DC and AC power; DC power offers a steady, one-way flow of electricity. Because of this, it is perfect for applications that need precise and steady voltages. In contrast, AC power alternates direction, allowing for efficient transmission over long distances with minimal energy loss. Another key difference is in the generation and transformation of the two types of power. While DC power generation is simpler, AC power can be easily transformed to higher or lower voltage levels, making it more adaptable for various applications.
Key Functions and Features of Inverters:
- Conversion Efficiency: The inverter’s purpose is to convert DC to AC as effectively as possible while minimizing power loss.
- Output Waveform: The quality of the AC output can vary:
- – Square Wave: Simplest and least expensive, but not suitable for many appliances.
- – Modified Sine Wave: More sophisticated and appropriate for most appliances.
- – Pure Sine Wave: Although it’s the most expensive, it produces a surge that’s smooth and similar to mains power. Ideal for delicate electronic outfit.
- Power Ratings: Grounded on the maximum cargo they can handle, inverters are graded. Watts(W) or kilowatts(kW) are the units of dimension.
- Protection Features: Integrated protection against load, short circuit, and overheating is set up in numerous inverters.
Basic Components:
- DC Input: DC source of current. Essentially, it is a solar panel or battery.
- Oscillator: Uses the DC input to create a square wave with a high frequency.
- Transformer: Steps up or steps down the voltage of the AC output.
- Filter: Smooths the output waveform to produce a cleaner sine wave or modified sine wave.
Types of Inverters:
- Square Wave Inverters: Easy and reasonably priced Nevertheless, the AC output is less smooth. Fit for general-purpose machinery.
- Modified Sine Wave Inverters: Offers a waveform with greater resolution than square wave inverters. It’s suitable to power a wide range of widgets.
- Pure Sine Wave Inverters: Produces a steady, smooth surge that’s applicable for all kinds of appliances and electronic widgets and replicates AC electricity from the mains.
Technical Considerations
- Efficiency: To lower conversion losses, the inverter should conserve energy.
- Waveform Quality: The output waveform’s quality has an impact on compatibility and performance across different devices.
- Power Rating: The rating of inverters is determined by their highest output power. It must meet the requirements of the linked device.
- Protection Features: Typical features of inverters include overload protection. To guarantee safe operation, turn off the cooling system and use short circuit protection.
How Inverters Work
Working Example: Solar Inverter
- DC Input: Sunlight is converted into direct current by the solar panel.
- Oscillator: An inverter’s oscillator produces a high-frequency signal.
- Transistors: Transistors are used by inverters to fleetly turn on and off the DC input, creating an AC signal.
- Transformer: The transformer modifies the voltage to 120V or 240V, which is the same as the AC mains voltage.
- Filter: Filters minimize noise and harmonics by smoothing the output waveform.
- AC Output: Clean AC power from the inverter can be used to supply the mains or power appliances in the home.
Diagram

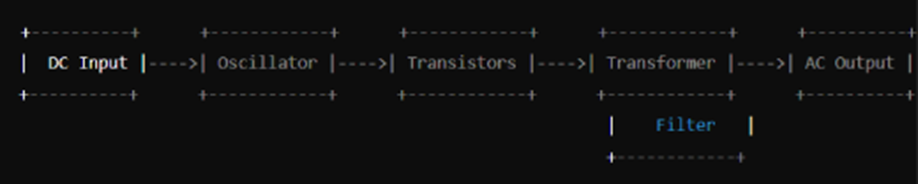

This is a basic schematic showing how an inverter operates:
This system uses oscillation and switching to convert DC input from a battery or solar panel to AC. A smooth AC output is produced by filtering and amplifying the voltage using a transformer.
In conclusion, inverters are crucial components of contemporary power systems because they allow the use of DC power supplies in situations where AC power is needed, assuring compatibility with a variety of appliances and electronic gadgets.
