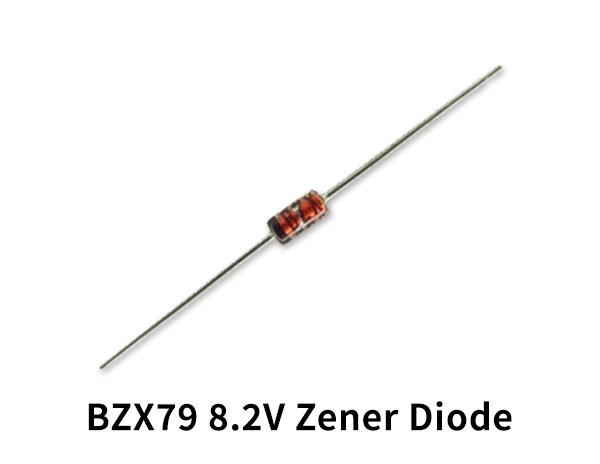

BZX79 8.2V 500mW Zener Diode – Datasheet

1,474 views

BZX79 8.2 Volt 500mW Zener diode is a two-way switch means that it can conduct current in forward as well as reverse direction. It is a heavily doped diode and permits the reverse current when a specific voltage level is reached.

BZX79-C8V2 Features

  • Min. Working Zener Voltage (Vz): 7.7V
  • Max. Working Zener Voltage (Vz): 8.7V
  • Continuous Forward Current (If): 0.25A
  • Max. Reverse Leakage Current (Ir): 0.7µA
  • Forward Voltage Drop (Vf): 0.9V
  • Total Power Dissipation (Ptot): 500mW

Application

  • Low voltage stabilizers or voltage references.

You can download this datasheet for BZX79 8.2V 500mW Zener Diode from the link given below:
