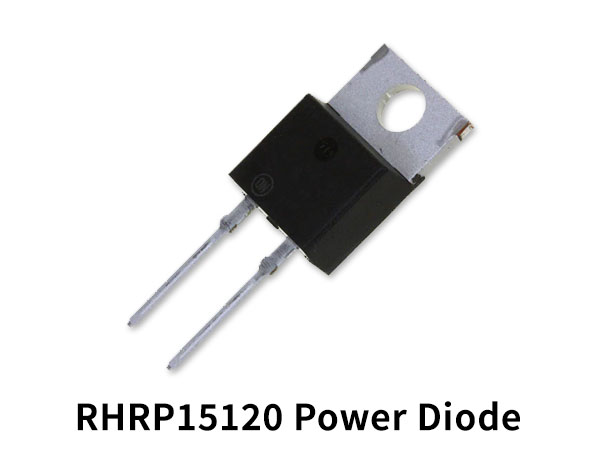

The RHRP15120 is hyper fast diodes with soft recovery characteristics. It has half the recovery time of ultrafast diodes and are silicon nitride passivated ion-implanted epitaxial planar construction.
RHRP15120 Pinout
RHRP15120 Features
- Hyper fast with Soft Recovery . . .. . . <65ns
- Operating Temperature. . . . .175oC
- Reverse Voltage . . . . .1200V
- Avalanche Energy Rated
- Planar Construction
RHRP15120 Specification
| Diode Type | Rectifier Diode |
| Application | Hyperfast Soft Recovery |
| Diode Element Material | Silicon |
| Forward Voltage-Max (VF) | 3.2 V |
| Non-rep Pk Forward Current-Max | 200.0 A |
| Operating Temperature-Min | -65.0 Cel |
| Operating Temperature-Max | 175.0 Cel |
| Output Current-Max | 15.0 A |
| Power Dissipation-Max | 100.0 W |
| Rep Pk Reverse Voltage-Max | 1200.0 V |
| Reverse Current-Max | 100.0 µA |
| Reverse Recovery Time-Max | 0.075 µs |
Application
- Switching Power Supplies
- Power Switching Circuits
- General Purpose
You can download this datasheet for RHRP15120 15A 1200V Hyper fast Diode from the link given below:
