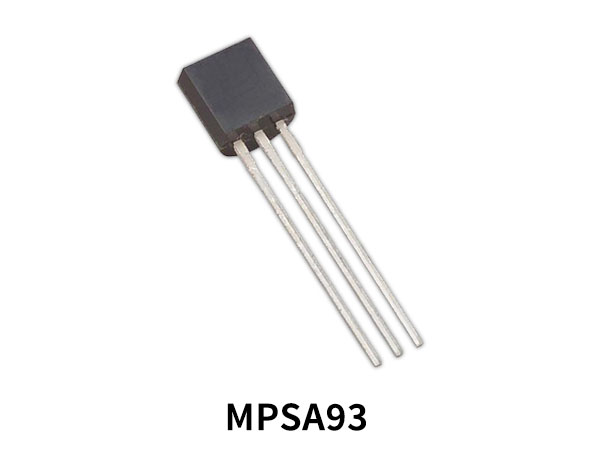

The MPSA93 is a high voltage PNP transistor, designed for telephone signal switching and for high voltage amplifiers.
MPSA93 Pinout

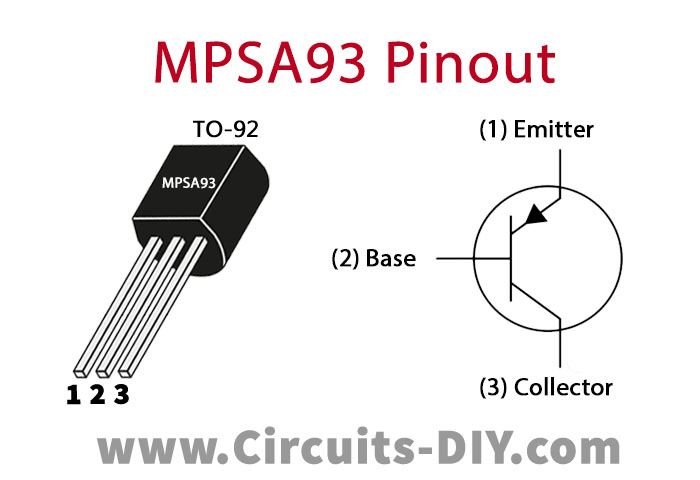

MPSA93 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Emitter |
| 2 | Base |
| 3 | Collector |
MPSA93 Key Features
- High Collector-Emitter voltage:
- VCEO=-300V(UTC MPSA92)
VCEO=-200V(UTC MPSA93)
- VCEO=-300V(UTC MPSA92)
- Collector Dissipation:
- Pc(max)=625mW
MPSA93 Specification
| Name | Description |
|---|---|
| Collector-Emitter Voltage (Vce) | 200 V |
| Collector-Base Voltage (Vcb) | 200 V |
| Emitter-Base Voltage (Veb) | 5 V |
| Collector Current (Ic) | 0.5 A |
| Collector Power Dissipation (Pc) | 0.625 W |
| Transition Frequency | 50 MHz |
Application
- High Voltage Application
- Telephone Application
You can download this datasheet for MPSA93 PNP High Voltage Transistor – Datasheet from the link given below:
