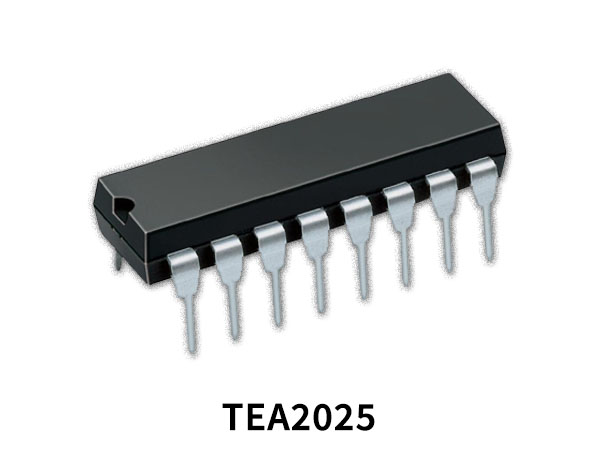

The TEA2025B/Dis a monolithic integrated circuit in 12+2+2 Powerdip and 12+4+4 SO, intended for use as dual or bridge power audio amplifier portable radio-cassette players.

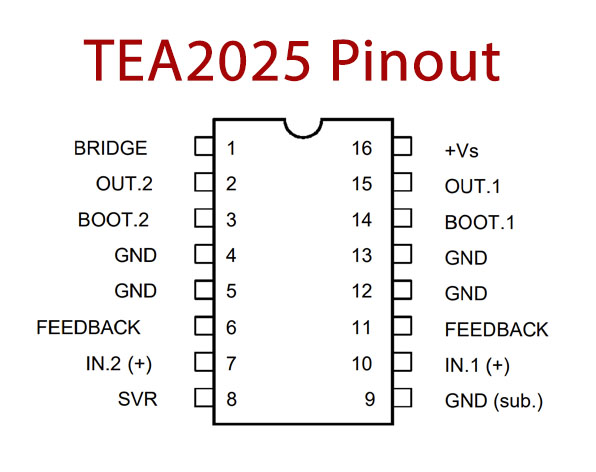

TEA2025 Pinout
TEA2025 Pin Configuration
| Pin No | Pin Name | Description |
|---|---|---|
| 1 | BRIDGE | Bridge Pin |
| 2 | OUT 2 | Output Pin 2 |
| 3 | BOOT 2 | Boot Pin 2 |
| 4 | GND | Ground Pin |
| 5 | GND | Ground Pin |
| 6 | FEEDBACK | Feedback Pin |
| 7 | 1N 2(+) | Positive Input Pin 2 |
| 8 | SVR | Common Voltage Rejection Ratio |
| 9 | GND SUB | Ground |
| 10 | IN 1+ | Positive Input Pin 1 |
| 11 | FEEDBACK | Feedback Pin |
| 12 | GND | Ground Pin |
| 13 | GND | Ground Pin |
| 14 | BOOT 1 | Boot Pin 1 |
| 15 | OUT 1 | Output Pin 1 |
| 16 | +Vs | Positive Supply Voltage |
TEA2025 Key Features
- Dual Or Bridge Connection Modes
- Few External Components
- Supply Voltage Down To 3V
- High Channel Separation
- Very Low Switch ON/OFF Noise
Application
- Dual or bridge power audio amplifier
- Portable radio-cassette players.
You can download this datasheet for TEA2025 Audio High Power Amplifier – Datasheet from the link given below:
