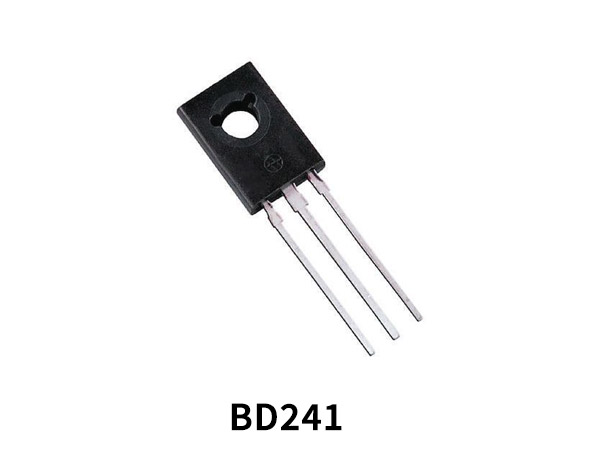

The BD241 NPN power transistor is manufactured in planar technology with “Base Island” layout. The resulting transistor shows exceptional high gain performance coupled with very low saturation voltage. The PNP types are BD242A and BD242C
Power Transistor?
Transistors are three-terminal semiconductor electronic devices that can be used as switches or amplifiers. They can be of NPN or PNP polarity, and many different types are available with different power and switching speed ratings. If a transistor designed to these concepts can handle more than 1 A of collector current, it is generally considered to be a power transistor. Such transistors must have low output resistance to deliver large load currents, and good junction insulation to resist high voltages.
BD241 Pinout
BD241 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Base |
| 2 | Collector |
| 3 | Emitter |
BD241 Key Features
- DC Current Gain -hFE = 25(Min)@ IC= 1.0A
- Collector-Emitter Sustaining Voltage-
- : VCEO(SUS) = 100V(Min)- BD241
- Type Designator: BD241
- Material of Transistor: Si
- Polarity: NPN
- Maximum Emitter-Base Voltage |Veb|: 5 V
BD241 Specification
| Ic (mA) | Vce (max) | Vcb | hfe | @Ic | FT |
|---|---|---|---|---|---|
| 3 | 45 | 55 | 25 | 1000 | 3 |
BD241 Equivalent/Alternate:
- BD201, BD202, BD203, BD204, BD242
Application
- General Purpose
- Audio
- Power Linear And Switching
You can download this datasheet for BD241 NPN Power Transistor from the link given below:
