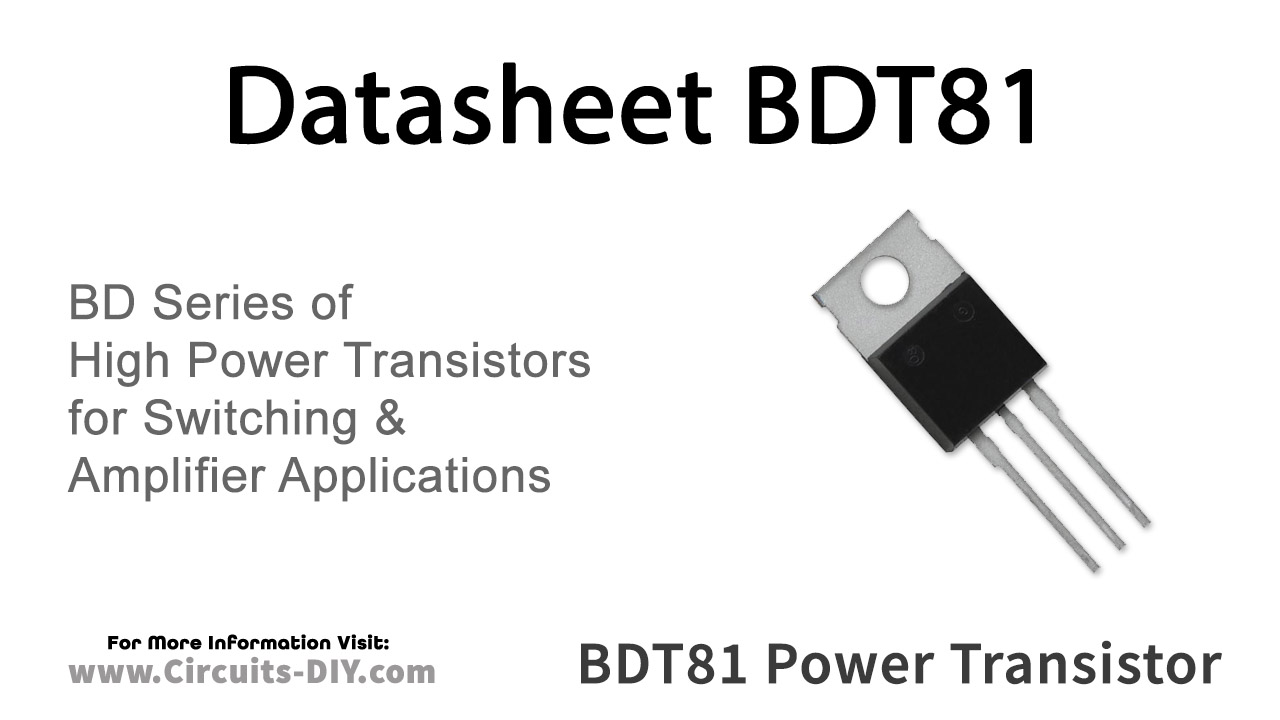

BDT81 NPN Power Transistor is used for lot of variations for robust device performance and reliable operation application
Power Transistor?
Transistors are three-terminal semiconductor electronic devices that can be used as switches or amplifiers. They can be of NPN or PNP polarity, and many different types are available with different power and switching speed ratings. If a transistor designed to these concepts can handle more than 1 A of collector current, it is generally considered to be a power transistor. Such transistors must have low output resistance to deliver large load currents, and good junction insulation to resist high voltages. They must also dissipate heat very quickly to avoid overheating
BDT81 Pinout
BDT81 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Base |
| 2 | Collector |
| 3 | Emitter |
BDT81 Key Features
- DC Current Gain -hFE = 40(Min)@ IC= 5A
- Collector-Emitter Sustaining Voltage- : VCEO(SUS) = 60V(Min)- BDT81
- Minimum Lot-to-Lot variations for robust device performance
- Type Designator: BDT81
- Material of Transistor: Si
- Polarity: NPN
BDT81 Specification
| Ic (mA) | Pd | Vce (max) | Vcb | hfe | Ft |
|---|---|---|---|---|---|
| 15 | 125 | 60 | 60 | 50 | 10 |
BDT81 Equivalent/Alternate:
- BDT29, BDT30, BDT82/84/86/88
Application
- Audio Output Stages
- General Amplifier And Switching
You can download this datasheet for BDT81 NPN Power Transistor from the link given below:
