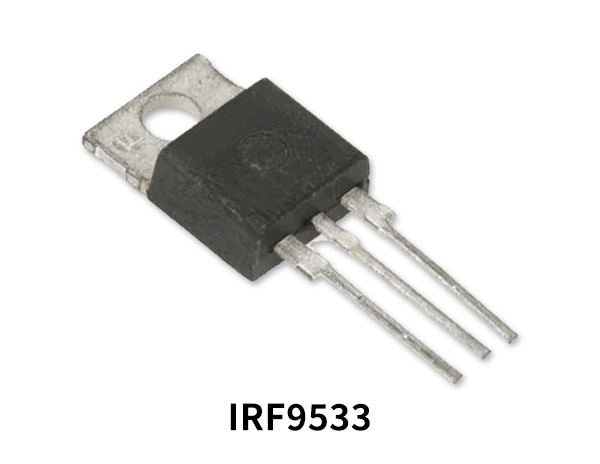

IRF9533 10A 60V P-Channel Power MOSFET is advanced line Of power MOSFET transistors. The efficient geometry and unique processing of the HEXFET design achieve very low on state resistance combined with high trans conductance and extreme device ruggedness. The P-Channel HEXFETs are designed for applications which require the convenience Of reverse polarity They retain all of the features of the more Common N-Channel HEXFETS such as voltage control, very fast switching, ease of paralleling, and excellent temperature stability.

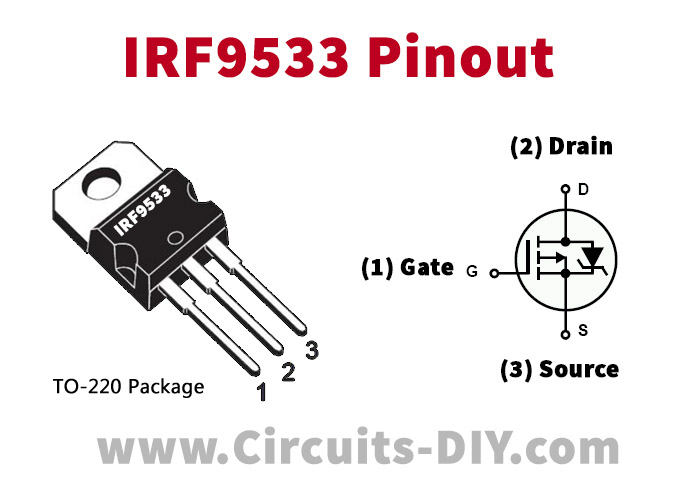

IRF9533 Pinout
IRF9533 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Gate |
| 2 | Drain |
| 3 | Source |
IRF9533 Key Features
- P-Channel Versatility
- Compact Plastic package
- Fast switching
- Low Drive Current
- Ease of Paralleling
- Excellent Temperature Stability
- Type Designator: IRF9533
- Type of Transistor: MOSFET
- Type of Control Channel: P -Channel
IRF9533 Specification
| Id (A) | Pd (W) | Vds (max) | Rds (on) | Vgs (max) |
|---|---|---|---|---|
| 10 | 75 | 100 | 0.4 | 10 |
IRF9533 Equivalent/Alternative
- IRF044, IRF044SMD, IRF054, IRF054SMD, IRF100B201, IRF100B202
Application
- Motor Control
- Audio Amplifiers
- Switched Converters
- Control Circuit
- Pulse Amplifiers
You can download this datasheet for IRF9533 10A 60V P-Channel Power MOSFET from the link given below:
