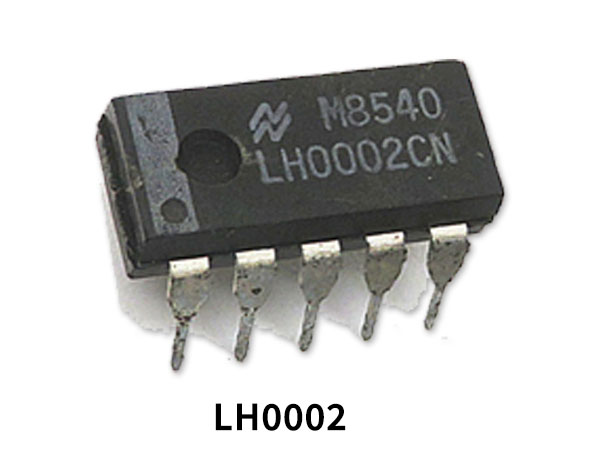

The LH0002 is a high-speed unity gain buffer designed to provide high current drive capability at frequencies from DC to over 50MHz. It is capable of providing a continuous current of ±100mA and a peak of ±400mA. It is ideal to integrate with an operational amplifier inside a closed-loop configuration.
LH0002 Pinout
LH0002 Pin Configuration
| Pin No | Pin Name | Description |
|---|---|---|
| 1 | V2+ | Positive Supply Voltage 2 |
| 2 | V1+ | Positive Supply Voltage 1 |
| 3 | IN | Input Pin |
| 4 | V1- | Negative Supply Voltage 1 |
| 5 | V2- | Negative Supply Voltage 2 |
| 6 | E2 | Emitter 2 |
| 7 | E4 | Emitter 4 |
| 8 | OUT | Output Pin |
| 9 | E3 | Emitter 3 |
| 10 | E1 | Emitter 1 |
LH0002 Key Features
- High Input Impedance 400kΩ
- Low Output Impedance 3Ω
- High Power Efficiency
- Low Harmonic Distortion
- Bandwidth DC to 50MHz
- Output Voltage Swing that Approaches Supply Voltage
- Pulsed Output Current 400mA
- Slew Rate 200V/µs
- Operation ±5V to ±20V
Application
- Line Driver
- Instrumentation Shield Driver
- High-Speed D/A Conversion
- Precision Current Source
- Video Driver
You can download this datasheet for LH0002 Current Amplifier – Datasheet from the link given below:
