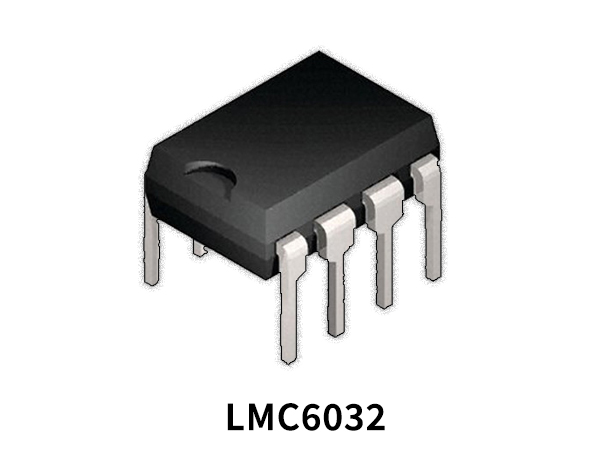

LMC6032 is a CMOS dual operational amplifier that can operate from either a single supply or dual supplies. The IC comes in an 8-pin hermetically sealed dual inline IC packaging (DIP) and possesses direct compatibility with several CMOS, PMOS, and NMOS devices. LMC6032 is generally preferred to be used in the output stages of audio amplifier systems to drive devices such as a loudspeaker load.
Operational Amplifier
An operational amplifier or op-amp is simply an electronic linear Integrated Circuit or IC that has multiple terminals. An op-amp is a voltage amplifying device that is meant to be work with external feedback components such as resistors and capacitors. Operational amplifiers are considered to be one of the most vastly used electronic components, with applications ranging from small scale consumer electronic components such as smartphones, tablets, PCs, to large scale industrial instrumentation tools such as poisonous gas sensors and transducers for impurity detection. Op-amps can be divided into two fundamental types:
- Precision Op-amps
- Differential Op-amps
LMC6032 Pinout
LMC6032 Pin Configuration
| Pin No | Pin Name | Description |
|---|---|---|
| 1 | OUTPUT A | Output of Amplifier A |
| 2 | INV-INPUT A | Inverting Input Of Amplifier A |
| 3 | NON-INV-INPUT A | Non Inverting Input Of Amplifier A |
| 4 | V- | Negative Power Supply |
| 5 | NON-INV-INPUT B | Non Inverting Input Of Amplifier B |
| 6 | INV-INPUT B | Inverting Input Of Amplifier B |
| 7 | OUTPUT B | Output of Amplifier B |
| 8 | V+ | Positive Power Supply |
LMC6032 Features
- Specified for 2 kΩ and 600Ω loads
- High voltage gain: 126 dB
- Low offset voltage drift: 2.3 µV/˚C
- Ultra low input bias current: 40 fA
- Input common-mode range includes V−
- Operating range from +5V to +15V supply
- ISS = 400 µA/amplifier; independent of V+
- Low distortion: 0.01% at 10 kHz
- Slew rate: 1.1 V/µs
- Improved performance over TLC272
Application
- High-impedance buffer or preamplifier
- Current-to-voltage converter
- Long-term integrator
- Sample-and-hold circuit
- Medical instrumentation
LMC6032 Datasheet
You can download this datasheet for LMC6032 CMOS Dual Op-Amp from the link given below:
