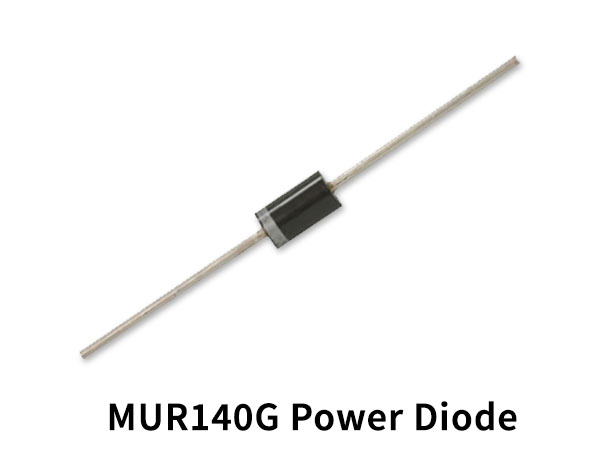

MUR140G 1A & 400V Ultrafast Recovery Diode is a series of switch mode power rectifiers and is designed for use in switching power supplies, inverters and as free wheeling diodes.

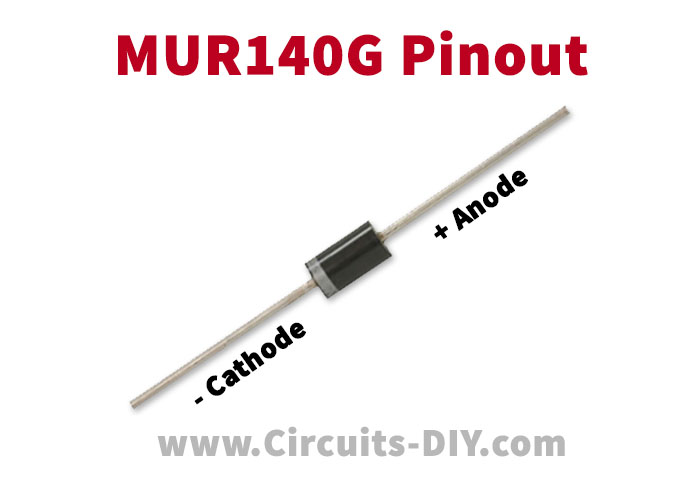

MUR140G Pinout
MUR140G Features
- Ultrafast 25, 50 and 75 Nanosecond Recovery Times
- 175°C Operating Junction Temperature
- Low Forward Voltage
- Low Leakage Current
- High Temperature Glass Passivated Junction
- Reverse Voltage to 600 V
- Shipped in Plastic Bags; 1,000 per bag
- Available Tape and Reel; 5,000 per Reel, by adding a “RL’’ Suffix to the Part Number
- These are Pb−free devices
MUR140G Specification
| Mfr Package Description | Case 59-10, 2 Pin |
| Diode Type | Rectifier Diode |
| Diode Element Material | Silicon |
| Forward Voltage-Max (VF) | 1.25 V |
| Non-rep pk Forward Current-Max | 35.0 A |
| Operating Temperature-Min | -65.0 Cel |
| Operating Temperature-Max | 175.0 Cel |
| Output Current-Max | 1.0 A |
| Peak Reflow Temperature (Cel) | 260 |
| Rep Pk Reverse Voltage-Max | 400.0 V |
| Reverse Recovery Time-Max | 0.075 µs |
| Time Peak Reflow Temperature-Max (s) | 40 |
Application
- Switching power supplies
- Inverters
- Wheeling diodes
You can download this datasheet for MUR140G 1A 400V Ultra-Fast Recovery Diode from the link given below:
