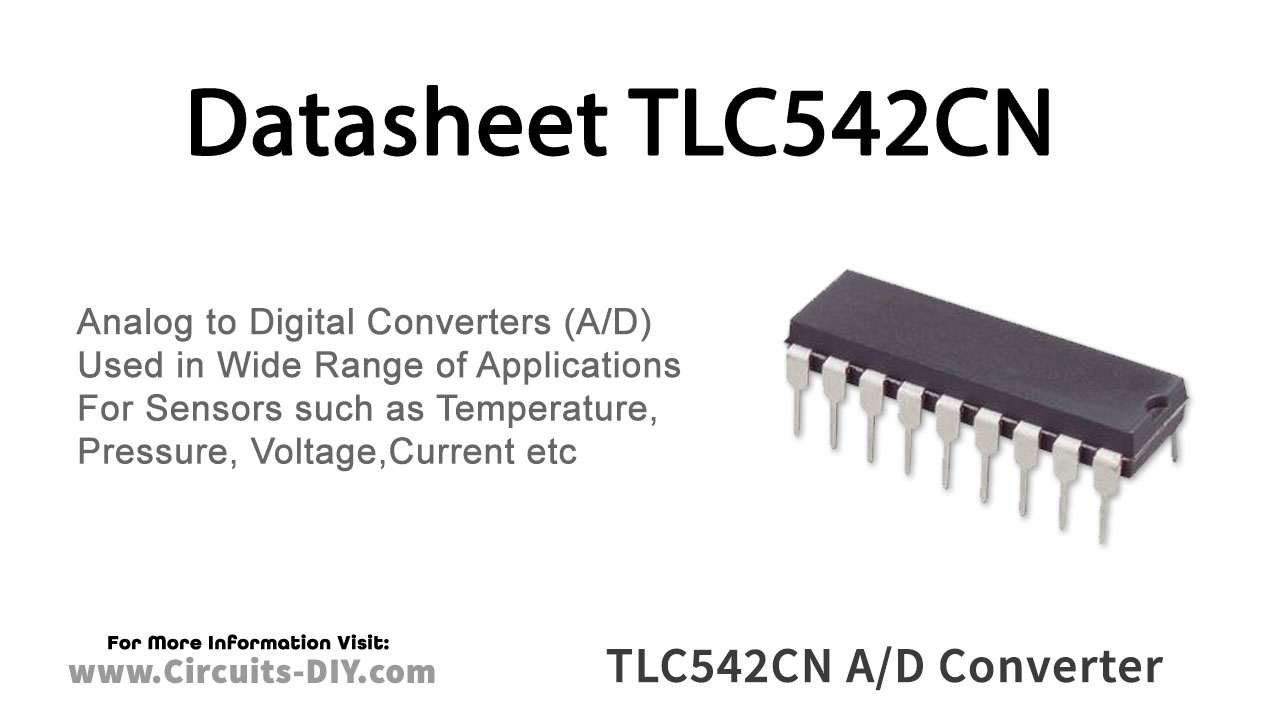

The TLC542CN is a CMOS converter built around an 8-bit switched-capacitor successive-approximation analog-to-digital converter. The device is designed for serial interface to a microprocessor or peripheral via a 3-state output with three inputs [including I/O CLOCK, CS (chip select), and ADDRESS INPUT]. The TLC542 allows high-speed data transfers and sample rates of up to 40,000 samples per second. In addition to the high-speed converter and versatile control logic, an on-chip 12-channel analog multiplexer can sample any one of 11 inputs or an internal self-test voltage, and the sample and hold is started under microprocessor control. At the end of conversion, the end-of conversion (EOC) output pin goes high to indicate that conversion is complete.
TLC542CN Pinout
TLC542CN Pin Configuration
| Pin No | Pin Name | Description |
|---|---|---|
| 1 | IN A0 | Input Pin A0 |
| 2 | IN A1 | Input Pin A1 |
| 3 | IN A2 | Input Pin A2 |
| 4 | IN A3 | Input Pin A3 |
| 5 | IN A4 | Input Pin A4 |
| 6 | IN A5 | Input Pin A5 |
| 7 | IN A6 | Input Pin A6 |
| 8 | IN A7 | Input Pin A7 |
| 9 | IN A8 | Input Pin A8 |
| 10 | GND | Ground Pin |
| 11 | IN A9 | Input Pin A9 |
| 12 | IN A10 | Input Pin A10 |
| 13 | REF- | Negative Reference Voltage |
| 14 | REF+ | Positive Reference Voltage |
| 15 | CS’ | Chip Select (Active Low) |
| 16 | DATA OUT | Data output Pin |
| 17 | ADDRESS IN | Address Input Pin |
| 18 | I/O CLK | Input /Output Clock Pin |
| 19 | EOC | END Of Conversion |
| 20 | VCC | Supply Voltage |
TLC542CN Features
- 8-Bit Resolution A/D Converter
- Microprocessor Peripheral or Stand-Alone Operation
- On-Chip 12-Channel Analog Multiplexer
- Built-In Self-Test Mode
- Software-Controllable Sample and Hold
- Total Unadjusted Error . . . ±0.5 LSB Max
- Direct Replacement for Motorola MC145041
- Onboard System Clock
- End-of-Conversion (EOC) Output
- Pinout and Control Signals Compatible with the TLC1542/3 10-Bit A/D Converters
- CMOS Technology
TLC542CN Specification
- Channel Acquisition/Sample Time 16 µs
- Conversion Time (Max) 20 µs
- Samples per Second (Max) 25 × 103
- Power Dissipation 10 mW
Application
- Data Converters
- Clocks and Timers
- Microcontrollers
- Video & Imaging
- Automotive
- Digital Control
- Optical Networking
- Broadband
You can download this datasheet for TLC542CN 8-bit A/D Converter from the link given below:
