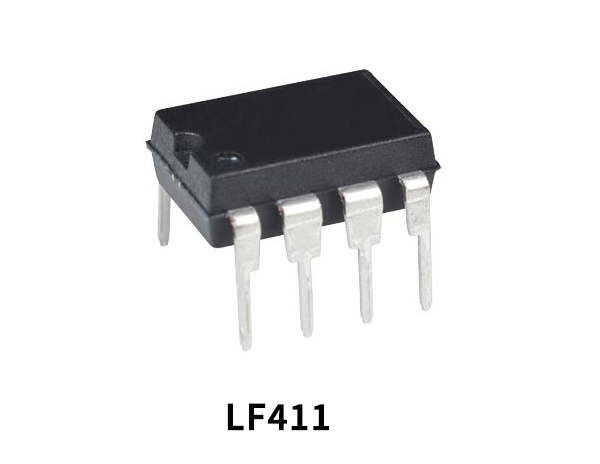

LF411 is a Low offset drift JFET input Operational Amplifier. The device utilizes JFET input operational amplifiers with very low input offset voltage and guaranteed input offset voltage drift. They require a low supply current yet maintain a large gain bandwidth product and fast slew rate. The IC always comes in an 8 – pin hermetically sealed dual in line IC package (DIP), and is compatible with almost every JFET, CMOS, BiMOS device.
JFET Operational Amplifier
JFET (Junction field effect transistor) operational amplifier is a simple electronic configuration that boost up a voltage of lower strength to a higher level. Operational amplifiers are usually designed to be used with external feedback components such as resistors and capacitors. Operational amplifiers are commonly used in devices such as home theatre systems, VCRs, PCs, Laptops, etc. JFET operational amplifiers are also an essential feature for many audio instrumentation tools such as a decibel meter (dB meter).
LF411 Pinout

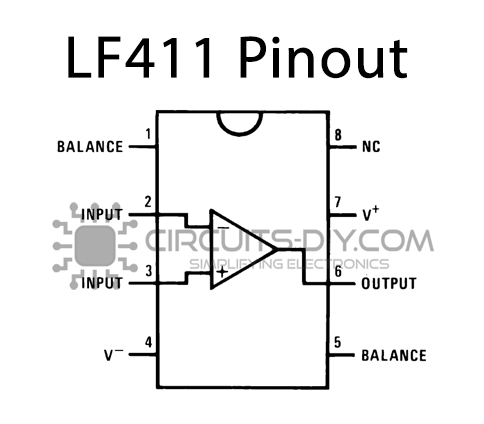

LF411 Pin Configuration
| Pin No | Pin Name | Description |
|---|---|---|
| 1 | BALANCE 1 | Offset Balancing Pin 1 |
| 2 | IN 1 | Input Pin 1 |
| 3 | IN 2 | Input Pin 2 |
| 4 | V- | Negative Power Supply |
| 5 | BALANCE | Offset Balancing Pin 2 |
| 6 | OUTPUT | Output Pin |
| 7 | V+ | Positive Power Supply |
| 8 | NC | No Connection |
LF411 Features and Specification
- Number of channels (#) 1
- Total supply voltage (Max) (+5V=5, +/-5V=10) 36
- Total supply voltage (Min) (+5V=5, +/-5V=10) 7
- Rail-to-rail No
- GBW (Typ) (MHz) 3
- Slew rate (Typ) (V/us) 15
- Vos (offset voltage @ 25 C) (Max) (mV) 2
- Iq per channel (Typ) (mA) 2
- Vn at 1 kHz (Typ) (nV/rtHz) 18
- Rating Catalog
- Operating temperature range (C) 0 to 70
- Offset drift (Typ) (uV/C) 10
- Input bias current (Max) (pA) 200
- CMRR (Typ) (dB) 100
- Output current (Typ) (mA) 25
- Architecture FET
Application
- Signal Processing
- Industrial
LF411 Datasheet
You can download this datasheet for LF411 Low Offset Drift JFET Input Op-Amp from the link given below:
