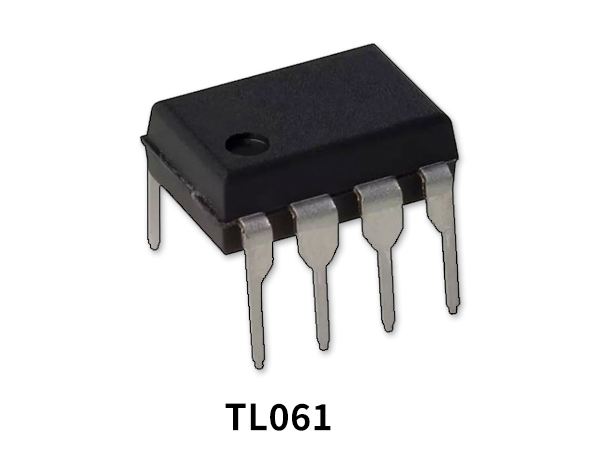

TL061 ICs are designed to function as low power versions of the TL0X series amplifiers. The IC has range of working conditions, a wide range of working voltages, and possesses direct interfacing capability with almost every PMOS, CMOS, and NMOS device. Moreover, the IC offers a wide array of features such as high noise immunity, ESD barring/reduction, and exceptionally low power dissipation.
Operational Amplifier
An operational amplifier is one of the basic building blocks for analog circuits, An operational amplifier takes in differential voltage input and produces a single-ended voltage output. The basic purpose of employing an operational amplifier in an analog circuit is to perform the function of signal amplification: The process of boosting an electrical signal of low strength to a level of higher amplitude. Op-amps also function as a filter of the input signal; meaning that, an operational amplifier is able to extract the signal with the target frequency. Op-amps can be divided into two fundamental parts:
- Precision Op-amps
- Differential Op-amps

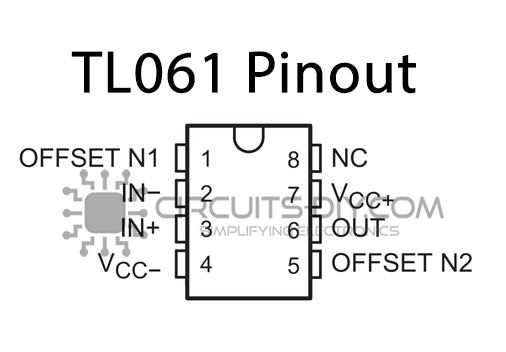

TL061 Pinout
TL061 Pin Configuration
| Pin No | Pin Name | Description |
|---|---|---|
| 1 | OFFSET N1 | Offset Null Pin 1 |
| 2 | INV-INPUT | Inverting Input Of Amplifier |
| 3 | NON-INV-INPUT | Non Inverting Input Of Amplifier |
| 4 | VCC- | Negative Supply Voltage |
| 5 | OFFSET N2 | Offset Null Pin 2 |
| 6 | OUT | Output Of Amplifier |
| 7 | VCC+ | Positive Supply Voltage |
| 8 | NC | No Connection |
TL061 Features
- Very Low Power Consumption
- Typical Supply Current . . . 200 µA (Per Amplifier)
- Wide Common-Mode and Differential Voltage Ranges
- Low Input Bias and Offset Currents
- Common-Mode
- Output Short-Circuit Protection
- High Input Impedance . . . JFET-Input Stage
- Internal Frequency Compensation
- Latch-Up-Free Operation
Application
- Audio
- Automotive
- Consumer Electronics
- Video and Imaging
- Wireless
- Medical
- Industrial
- Security
TL061 Datasheet
You can download this datasheet for TL061 Low-Power JFET Input Op-Amp from the link given below:
