Temperature Level Bar Graph using LM35 with Arduino

Contents hide

4 Temperature Level Bar Graph Arduino Sketch Code

LM35 is a temperature sensor that outputs an analog signal which is proportional to the instantaneous temperature. The output voltage can easily be interpreted to obtain a temperature reading in Celsius. The advantage of lm35 over the thermistor is it does not require any external calibration. Here the bar graph LED output is a very easy-to-understand level of output. We have used the LM35 three-pin temperature sensor and Arduino Uno to take input from LM35 and to control an array of LEDs. The LM35 temperature sensor is fairly precise, never wears out, works under many environmental conditions, and requires no external components to work. It provides a typical accuracy of ±0.5°C at room temperature and ±1°C over a full −55°C to +155°C temperature range.

LM35-Precision-Celcius-Temperature-Sensor

Buy Now

Hardware Required

S.No	Components	Value	Qty
1	Arduino Uno	–	1
2	Resistor	220Ω,1KΩ	1,1
3	Temperature Sensor	L M 35	1
4	Connecting Wires	–	–
5	LED	–	3

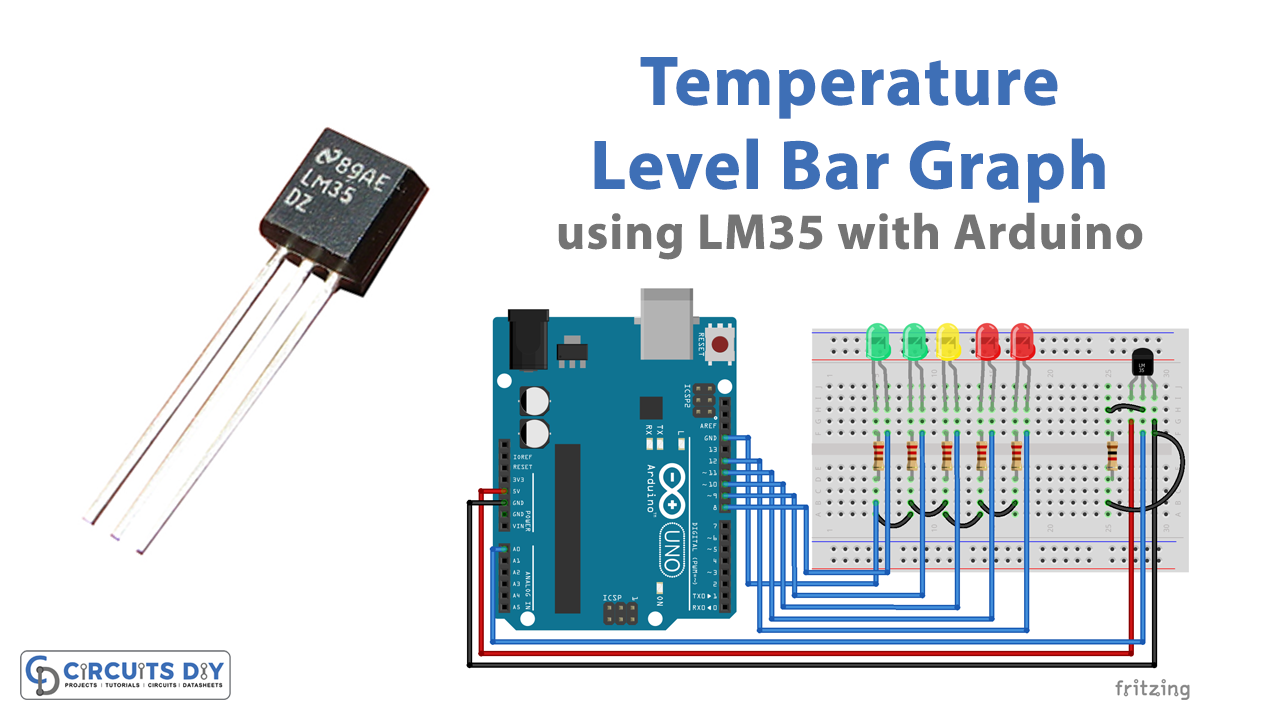

Circuit Diagram

LM35 Pinout

Temperature Level Bar Graph Arduino Sketch Code

int tempsensor = 0;
int firstled = 8;
int secondled = 9;
int thirdled = 10;
int fourthled = 11;
int fifthled = 12;
int buzzerpin = 7;
void setup()
{
Serial.begin(9600);
pinMode(firstled,OUTPUT);
pinMode(secondled,OUTPUT);
pinMode(thirdled,OUTPUT);
pinMode(fourthled,OUTPUT);
pinMode(fifthled,OUTPUT);
pinMode(buzzerpin,OUTPUT);
}
void loop()
{
tempsensor=analogRead(0);
if(tempsensor<=129)
{
digitalWrite(firstled,HIGH);
digitalWrite(secondled,LOW);
digitalWrite(thirdled,LOW);
digitalWrite(fourthled,LOW);
digitalWrite(fifthled,LOW);
digitalWrite(buzzerpin,LOW);
}
else if(tempsensor>=130&&tempsensor<155)
{
digitalWrite(firstled,LOW);
digitalWrite(secondled,HIGH);
digitalWrite(thirdled,LOW);
digitalWrite(fourthled,LOW);
digitalWrite(fifthled,LOW);
digitalWrite(buzzerpin,LOW);
}
else if(tempsensor>=155&&tempsensor<165)
{
digitalWrite(firstled,LOW);
digitalWrite(secondled,LOW);
digitalWrite(thirdled,HIGH);
digitalWrite(fourthled,LOW);
digitalWrite(fifthled,LOW);
digitalWrite(buzzerpin,LOW);
}
else if(tempsensor>=165&&tempsensor<180)
{
digitalWrite(firstled,LOW);
digitalWrite(secondled,LOW);
digitalWrite(thirdled,LOW);
digitalWrite(fourthled,HIGH);
digitalWrite(fifthled,LOW);
digitalWrite(buzzerpin,LOW);
}
else if(tempsensor>=180&&tempsensor<200)
{
digitalWrite(firstled,LOW);
digitalWrite(secondled,LOW);
digitalWrite(thirdled,LOW);
digitalWrite(fourthled,LOW);
digitalWrite(fifthled,HIGH);
digitalWrite(buzzerpin,LOW);
}
else if(tempsensor>200)
{
digitalWrite(firstled,HIGH);
digitalWrite(secondled,HIGH);
digitalWrite(thirdled,HIGH);
digitalWrite(fourthled,HIGH);
digitalWrite(fifthled,HIGH);
digitalWrite(buzzerpin,HIGH);
}
Serial.println(tempsensor);
delay(150);
}
